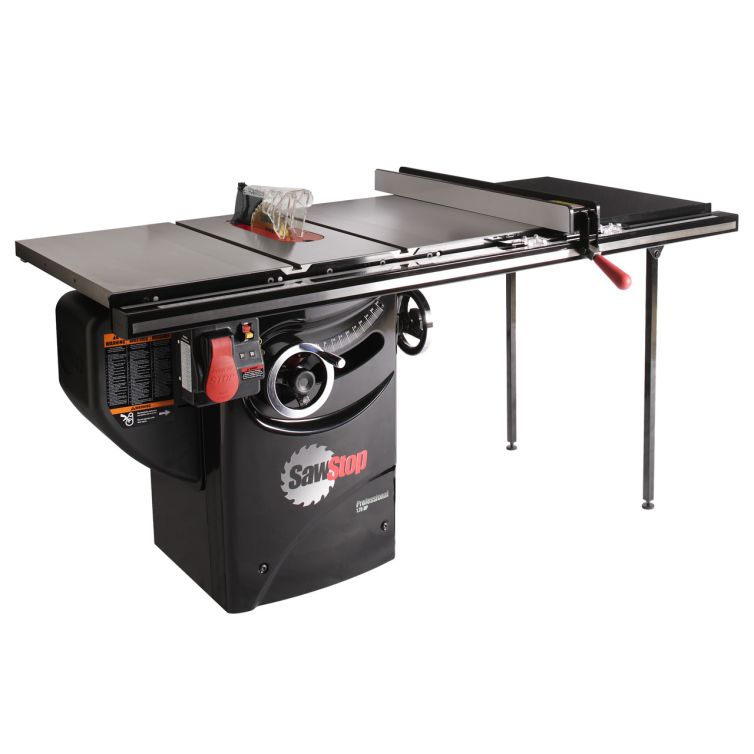

SawStop PCS175 10" 1.75HP Professional Cabinet Saw with 36" Fence

• Two fence options available:
• Professional 36" T-Glide Fence Assembly with 36" rip capacity | Dimensions: 69-1/8" w x 33" d x 34" h
• Professional 52" T-Glide Fence Assembly with 52" rip capacity | Dimensions: 85-1/4" w x 33" d x 34" h

Specifications

• Motor (PCS175) : 1 -3/4Hp, 1 phase, 110 V, 14 A
• Cabinet footprint: 19-3/8" w x 19-3/8" d
• Cast iron table: 20" w x 27" d
• Extension wings: 12" w x 27" d each
• Shipping weight (table saw only): 335 lbs
• Blade diameter: 10" 40-tooth, prof. grade, 5/8" arbor
• Blade tilt: left
• Max. depth of cut, blade at 0º: 3-1/8"
• Max. rip, right of blade: 30" (w/ 30" rails)
• Max. rip, right of blade: 36" (w/ 36" rails)
• Max. rip, right of blade: 52" (w/ 52" rails)
• Max. rip, left of blade: 12"
• Dado capacity: 13/16" (8" dado)
• Dust collection port diameter: 4
• Overall saw dimensions: 44" w x 29 3/4" d x 34" h
• 69 1/8" w x 33" d x 34" h (w/ T-Glide Fence System & 36" rails)
• 85 1/4" w x 33" d x 34" h (w/ T-Glide Fence System & 52" rails)

Includes

• Cast iron extension wings (2)
• Miter gauge
• Micro Blade Guard (1.75 hp models)
• Riving knife
• Blade wrenches (2)
• Push stick
• 10” blade
• Standard brake cartridge
• Owner’s manual
• Hardware packs (2)
• 3mm hex key
• 5mm hex key
• 8mm hex key
• Blade spacing adjustment gauge
