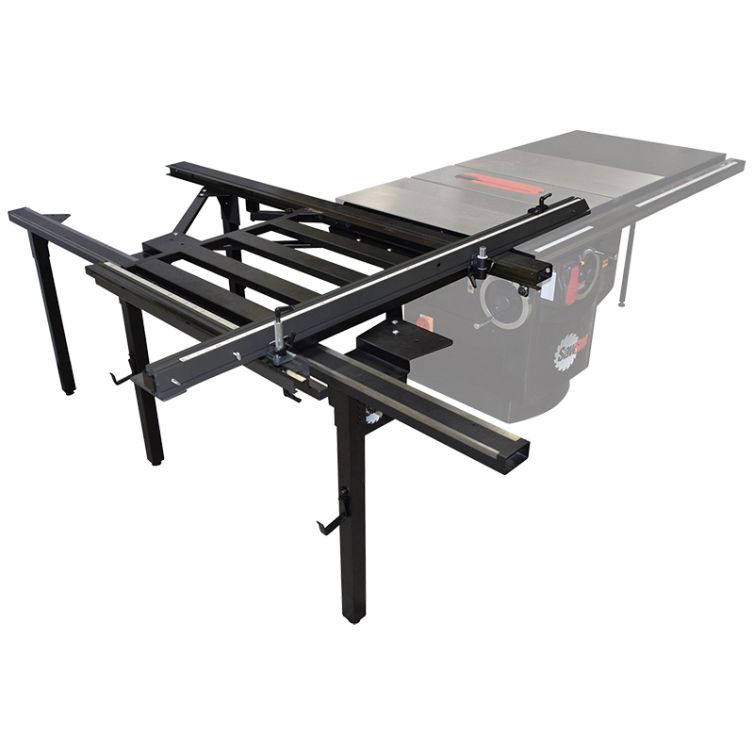

SawStop TSA-SA70 Large Sliding Table

Engineered for the demands of the industrial woodshop, the Large Sliding Table ensures easy, repeatable operation. Cut sheet goods and larger stock easily, with maximum control and sure measurement. A rigid steel frame and 14 sealed, steel bearings ensure a reliable, smooth glide, and maximum adjustability affords both traditional and Euro configurations for a max crosscut of 70".

Specifications

• Product: large sliding table

• Manufacturer: SawStop

• Model: TSA-SA70

• Sliding table dimensions: 30" x 30-1/2"

• Maximum table travel: 71-1/2"

• Maximum crosscuting length: 118" (on PCS without extension wing)

• Maximum rip capcity: 49"

• Maximum rip capacity (rear mounting): 70"

• Weight capacity: 350 lbs

Includes

• (1) Sliding table

• (1) Inner guide tube

• (1) Outer guide tube

• (1) Crosscut fence

• (1) Angle guide rail

• (1) Mounting bracket

• (4) Support legs

• (2) Leg brackets

• (2) Stepped leg bracket

• (1) Positioning plate

• (1) Front bracket

• (1) Support tube

• (3) Lateral brackets

• (2) Guide bearing assemblies

• (1) Fence pivot assembly

• (1) Flip stop

• (1) Fence lock assembly

• (1) Fence extension

• (1) Logo plate

• (1) Owner's manual
