Miller Multimatic 215 Welder

Easy-to-use and versatile MIG, Stick and TIG welder that helps build skills. Colour screen featuring Auto-Set Elite. This all-in-one welder connects to 120 or 240 volt input power. Welds up to 3/8” mild steel.

KMS 5 Star Advantage Plan: We add one FREE extra year of warranty to every qualifying tool or machine purchased at KMS.

Capable of MIG, flux-cored, DC stick and DC TIG processes, allowing you to build your skills
Colour LCD with Auto-Set Elite adjusts machine to suit multiple materials and multiple processes with the ability to fine-tune your settings
Inverter technology combines best-in-class arc characteristics, extremely forgiving to variations in arc length and travel speeds
Two gas connections on the back of the machine—one for MIG and one for TIG
Auto Spool Gun Detect automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
Multi-voltage plug (MVP) allows connection to common 120 or 240 V power receptacles without the use of any tools—simply choose the plug that fits the receptacle and connect to the power cord
Robust, angled wire drive with Quick Select drive roll, which offers three grooves—two for different size solid wire and a third for flux-cored wire
Smooth-Start provides smooth, spatter-free MIG starts
Fan-On-Demand power source cooling system operates only when needed, reducing noise, energy use and the amount of contaminants pulled through the machine.
Specifications:
Processes: Flux Cored (FCAW), TIG DC (GTAW-DC),MIG (GMAW), Stick (SMAW)
MIG welds 24 ga. to 3/8" mild steel
MIG welds 18 ga. to 1/4" aluminum (with optional spoolgun MEM-300371 or MEM-301272)
Lift Arc TIG welds 24 ga. to 1/4" steel (with optional TIG kit MEM-301337)
DC Stick welds 16 ga. to 3/8" steel
Input Power:120V / 240V, 50/60 Hz, single phase
Wire Speed: 60-600 IPM (1.5-15.2 m/min)
Machine Net Weight: 38
Miller True Blue Warranty

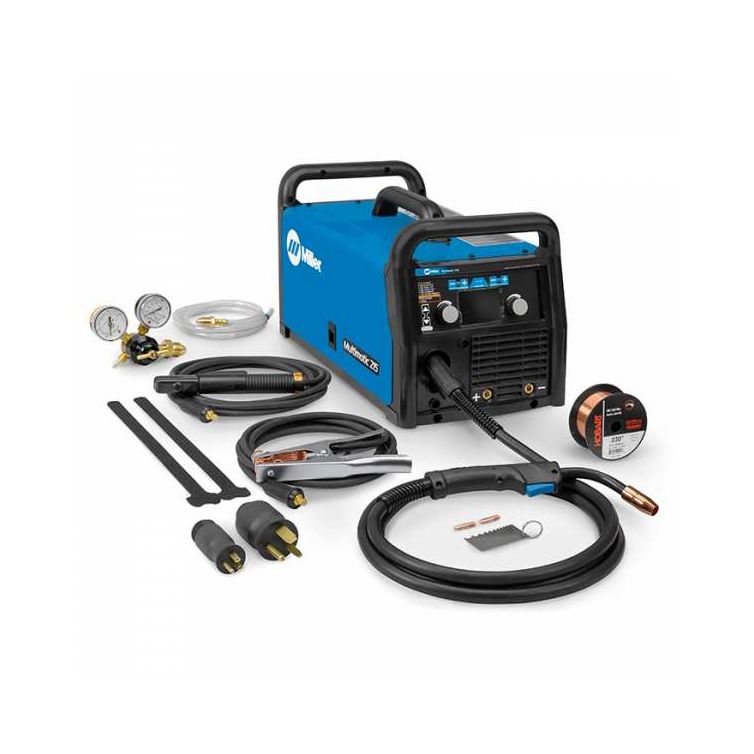

Includes:
Power source
6.5' (2 m ) power cord with MVP plugs for 120 V and 240 V
10' (3 m) M-100 MIG gun and cable assembly
13' (4 m) cable electrode holder and 25 mm Dinse-style connector
10' (3 m) work cable with clamp and 25 mm Dinse-style connector
Flow gauge regulator and gas hose for argon and AR/CO2 mix
Hobart spool of .030" (0.8 mm) solid wire
Two contact tips for .030" (0.8 mm) wire
Quick Select drive rolls for .024" (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
Material thickness gauge (229895)
Click PDF icon to download feature/ spec sheet
