Miller

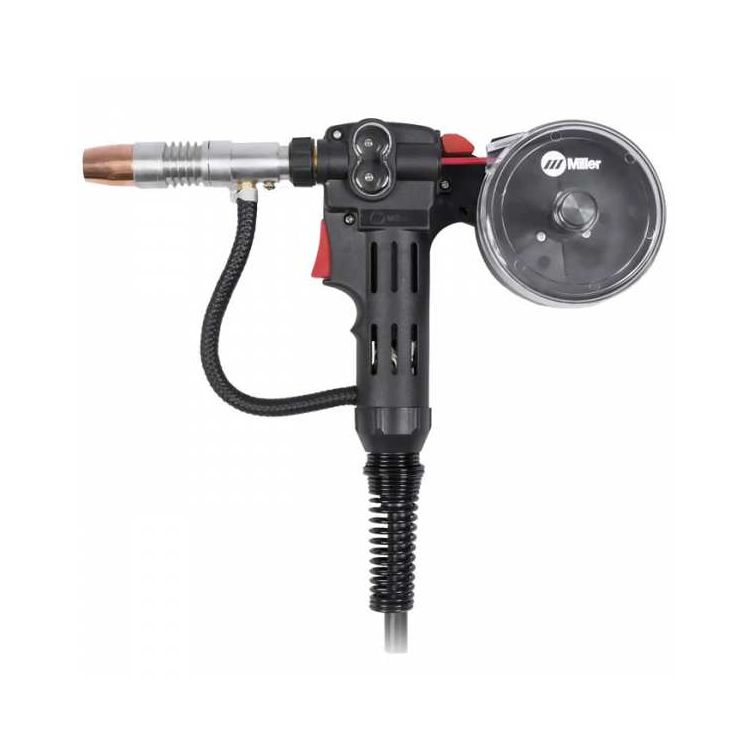

Miller Spoolmate 150 Spool Gun

Flyer Sale
SKU: MEM-301272 Model Number: 301272

When you see MAP, this means the manufacturer has instituted a Minimum Advertised Price, which is the lowest price we are permitted to advertise the product online. For questions about price, please contact us.

In Stock Online

Selected Location

Other Locations

Reliable and economical, the direct-connect Spoolmate 150 spool gun provides 20' of cable reach and accessibility. Smoothly feeds 4000 and 5000 series aluminum wire.

  • 20-foot Direct Connect Cable—Heavy-duty strain relief provides extended reach and accessibility to your work.
  • Spool Visibility—The clear spool cover provides visibility to the wire so you can see how much is left on the spool.
  • Durable Parts—The barrel, drive motor and cast aluminum drive box are heavy-duty.
  • Consistent Wire Feeding—The dual v-knurled drive rolls consistently feed wire through the gun.
  • Versatile Wire Options—Weld both 4000 and 5000 series aluminum wire with the Spoolmate 150.
  • Specifications:
  • Welding output: 150 amps @ 60% duty cycle
  • Maximum wire speed: 115-715 inches per min
  • Wire size: 0.030" to 0.035"
  • Cable length: 20'
  • Maximum spool size: 4" (102 mm)
  • Gun length: 12.5"
  • Gun width: 3"
  • Gun height: 11.5"
  • Assembly weight: 7.3 lbs (3.3 kg)
  • Includes Spoolmate 150 Spool Gun, 20' (6.1 m) cable, extra contact tips and nozzle
  • Click PDF icon to download feature / spec sheet MEM-301272
Manufacturer
Miller
Manufacturer SKU
301272
