Miller

Miller Millermatic 255 Pulsed MIG Welder

SKU: MEM-907734 Model Number: 907734
In Stock Online

Selected Location

Other Locations

An easy to use machine that increases efficiency and productivity for the light manufacturing and fabrication users. Color screen featuring Auto-Set Elite and Pulsed MIG. This all-in-one welder connects to 208 or 240 volt input power. Welds up to 1/2” aluminum, stainless and mild steel. An easy-to-understand interface with 7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time so you can increase your weld time. This Millermatic comes with Miller's Auto-Set Elite which offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.


Other features include:

Auto-Line™ Technology for portability and reliability this inverter power supply allows for any single-phase input voltage hookup (208–240 V) with no manual linking, providing convenience in any job setting. Ideal solution for dirty or unreliable power.

Portability - Machine only weighs 84 lb. Weight is reduced by more than 50 percent compared to the Millermatic 252.

  • Set weld parameters by selecting wire and gas type, wire diameter
  • and material thickness
  • Angled wire drive
  • Infinite voltage control/7"digital display
  • Only 84 lbs
  • Auto gun detect
  • 3 year warranty

Specifications:

  • Processes: MIG (GMAW), Pulsed MIG (GMAW-P), Flux-cored (FCAW)
  • Input Power: 208V / 240V, 60Hz, single phase
  • Wire Speed: 50-800 IPM (1.3-20.3 m/min)
  • Machine Net Weight: 84 lbs
  • Spool size: 12"
  • 20 A - 350 A
  • Current type: DC
  • Rated Output: 230 A at 25.5 V 60%  duty cycle
  • Max open circuit voltage: 87 VDC
  • Weldable metals: Aluminum, Stainless Steel, Steel
  • Miller True Blue Warranty

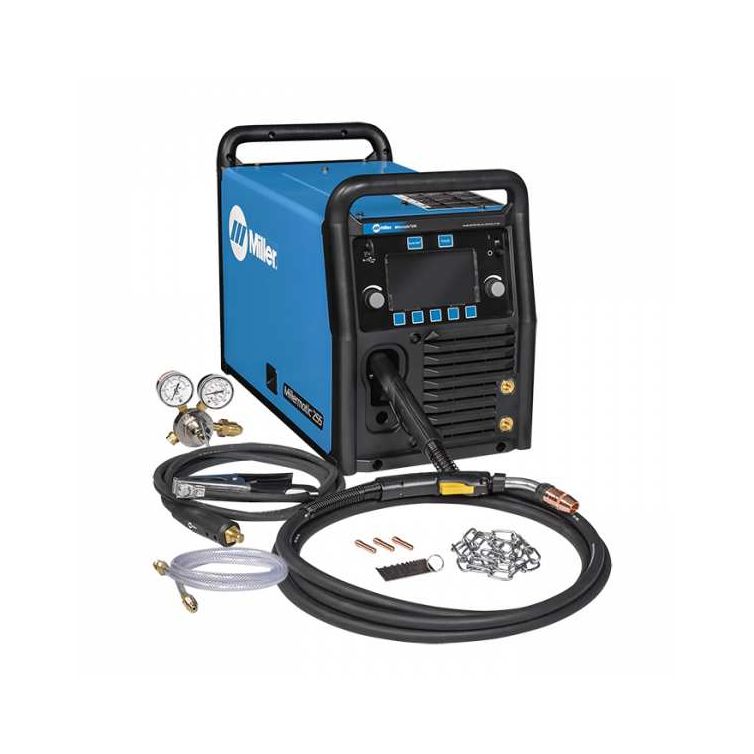

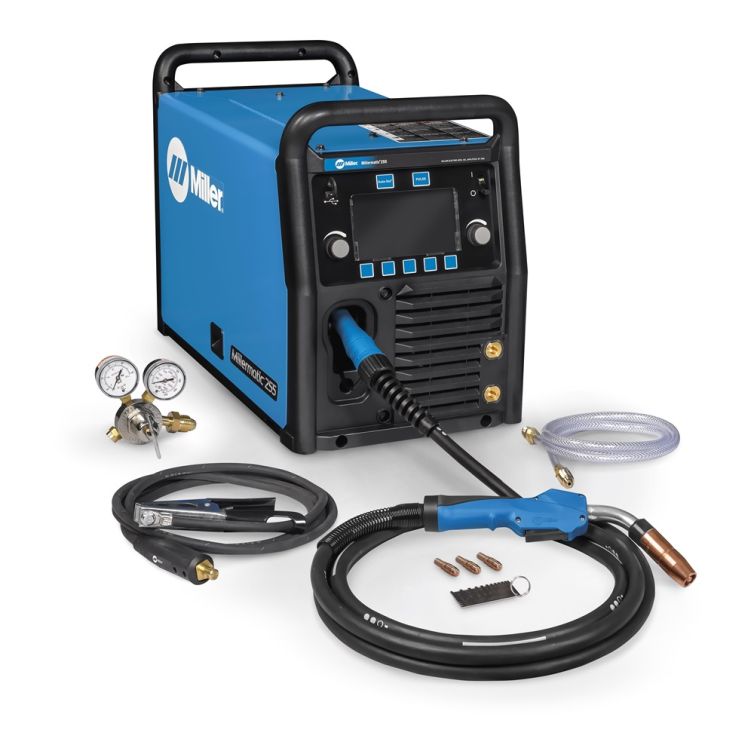

Includes:

  • Power source with 10' (3 m) power cord
  • 15' (4.5 m) 250-amp MDX™-250 MIG gun with Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
  • 10' (3 m) work cable and clamp and 50mm Dinse-style connector
  • Flow gauge regulator and gas hose for argon or AR/CO2 mix
  • Extra Contact tips
  • .035/.045 in. (0.9/1.2 mm) reversible drive rolls
  • Material Thickness Gauge
  • Click PDF icon to download feature/ spec sheet MEM-907734.pdf

Manufacturer
Miller
Manufacturer SKU
907734
