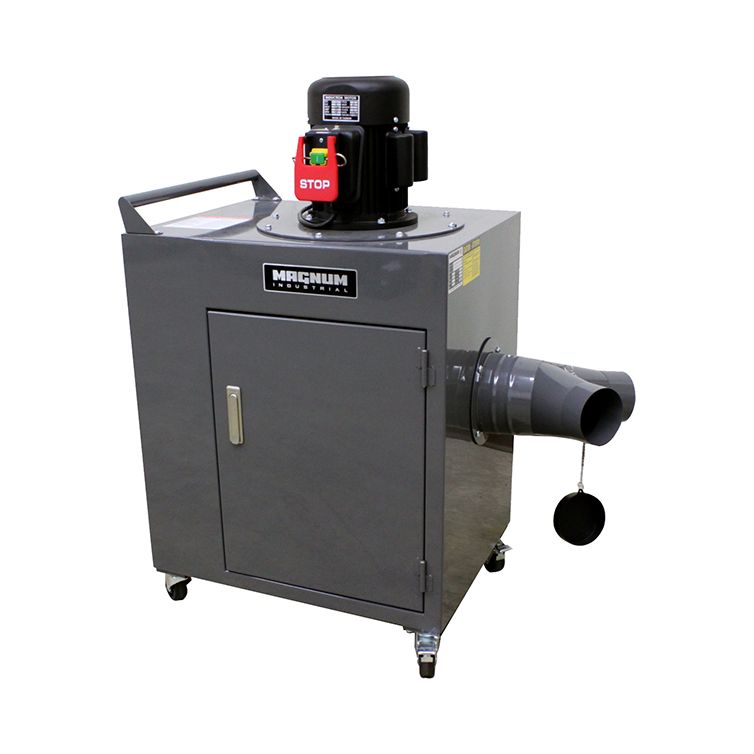

Magnum Industrial Metal Dust Collector - 755 CFM 12900

Super Special

Reg. $1,499.99
$1,299.95
Save $200
  • SKU: MI-12900
  • Model: 12900
  • ✓ In Stock Online
  • Manufactured by: Magnum Industrial
Qty: Buy Online, Pick Up In Store

FREE

Click here for gift cards!
Location
Qty
Coquitlam
2
Abbotsford
1
Langley
2
Chilliwack
1
Kelowna
1
Prince George
1
Victoria
2
Kamloops
1
Calgary
2
Grande Prairie
1
Edmonton
2
Red Deer
1

close popup

Upgrade shop safety and keep your workspace cleaner with the Magnum Industrial MI-12900 Metal Dust Collector. This unit captures and contains metal dust, chips, filings and fragments from grinders, sanders, band saws and other metalworking tools and machinery. The MI-12900 features a three-stage filter that includes a pleated filter, carbon filter and stainless steel mesh anti-spark filter. These filters can trap metal dust as small as 1 micron. Other features include easy-to-empty chip storage drawers, locking casters and a large diameter fan.

spec sheet manual.pdf download manual.pdf

  • Industrial-rated, dual voltage 1.5 hp motor drives a large 12.75" fan to deliver powerful suction
  • Advanced three stage filter—with pleated, carbon and stainless layers—traps metal particles as small as 1 micron
  • Dual inlet accommodates either two 4" hoses or one 6" for additional versatility
  • Noise-dampening design helps limit sound levels
  • Lockable swivelling casters provide easy mobility around the shop
  • Sliding chip drawer and fine dust tray are easy to access and empty
  • CSA approved with overload safety switch
  • Specifications:
  • Motor (pre-wired for 220V): 1.5 hp, 110/220 V, 6.5/3.3 Amps, 3,450 rpm
  • Blower wheel diameter: 12.75" (323 mm)
  • Airflow capacity: 755 CFM
  • Static pressure: 8.625" of water
  • Filter rating: 1 micron
  • Inlet: 6" (152 mm)
  • Inlet with wye: 2 x 4" (102 mm)
  • Sound rating: 85 dB(A)
  • Chip collection drawer: 17.75" x 13.5" x 7.875” (450 x 345 x 200 mm)?
  • Fine dust collection tray: 4.5" x 18.5" x 3" (115 x 465 x 75 mm)
  • Overall dimensions: 19.625" x 38.25" x 43.625" (500 x 970 x 1110 mm)
  • Weight: 185 lbs (84 kg)
