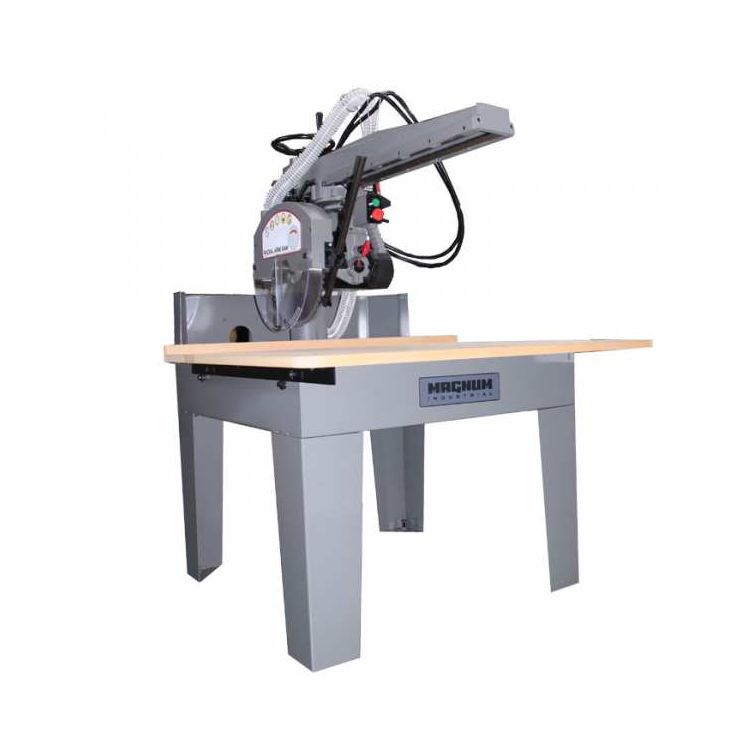

Magnum Industrial Heavy-Duty 16" Radial Arm Saw
Clearance
SKU: MI-53400
Model Number: 53-400
$4,499.97
$5,999.99
You save $1,500.02
Available in Select Stores Only
Available In Store Only
Designed for continuous-duty production shops, the Magnum Industrial MI-53400 Heavy-Duty 16" Radial Arm Saw features impressively sturdy castings and a rugged overall construction. It also comes with a variety of safety features including a blade brake, safety guard, riving knife, mag switch and motor return.
The MI-53400 delivers accurate results in many applications—crosscuts, rips, mitre cuts, bevel cuts and more—and fine adjustments are easy to make.
- Delivers precise results when cutting standard crosscuts and rips, as well as bevel and mitre cuts
- Heavy-duty cast-iron frame and all-steel column and stand allow for stable and accurate cutting
- Adjustable index features positive stops at 90° and 45°
- Automatic blade brake quickly stops blade after shutdown
- European-designed blade guard meets the highest safety standards
- Motor return spring safely and automatically repositions motor after cutting
- Built-in dust collection ports helps control debris and chips at the source
- Anti-kickback riving knife prevents overfeeding and jamming
- Magnetic safety switch with lock-out key provides added safety
- Specifications:
- Motor: 3 hp, 220 V, single phase
- Blade diameter: 16" (400 mm)
- Blade arbor: 1" (25 mm)
- Crosscut capacity: 24" (609 mm)
- Maximum cutting depth at 90°: 4-7/8" (124 mm)
- Maximum cutting depth at 45°: 2-1/2" (65 mm)
- Dado capacity: 1" (25 mm)
- Table height: 32" (813 mm)
- Table dimensions: 39-3/4" x 48" (1,010 x 1,220 mm)
- Overall dimensions: 56-5/8" x 48" x 67-7/16" (1,439 x 1,220 x 1,713 mm)
- Shipping weight: 799 lbs (363 kg)
- Net weight: 572 lbs (260 kg)
Manufacturer
Magnum Industrial
Manufacturer SKU
53-400
