Magnum Industrial Deluxe 14" Wood Cutting Band Saw

Reg. $1,399.99 Special Price $1,299.99
Limited Qty Online
SKU
MI-91400
Model#: MI-91400
Check Other Stores

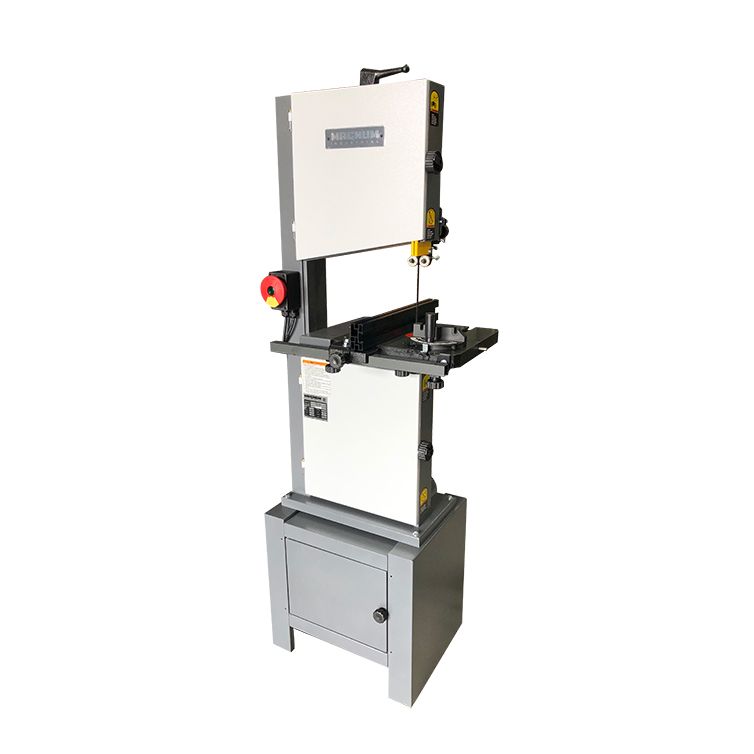

From ripping and resawing to detailed radius work, the Magnum Industrial MI-91400 Deluxe 14" Band Saw has the power and precision to tackle it all. With its fabricated European-style one-piece frame and balanced cast iron wheels, this band saw is a steady and stable wood-cutting machine. It's equipped with all the features you're looking for—sealed guide bearings, a quick-release tensioner, deluxe fence system and more. In addition, its dual voltage motor draws only 10 amps at 120 volts, so you can plug it into a standard outlet. Optional ceramic guides now available.

spec sheet manual.pdf
MI-91400
spec sheet manual.pdf
MI-91400A
download manual.pdf
MI-91400
download manual.pdf
MI-91400A

  • European-style one-piece welded frame and dynamically balanced cast-iron wheels ensure vibration-free operation
  • Sealed ball bearing guide system delivers smooth cuts and hassle-free setup
  • Quick-release blade tensioner makes it easy to set the correct tension
  • Two speed settings to handle a variety of cuts and stock
  • Keyed lock-out mag switch provides added security
  • Large 14" x 18" support table with cast-iron bracket offers a stable platform
  • Engineered dust collection ports optimize debris removal
  • Saw includes deluxe T-lock fence system with mitre gauge

Specifications:
Motor: 1.25 HP dual voltage 115/220 volts
Maximum cutting depth: 7"
Maximum cutting width: 13 5/8"
Wheel size: 14"
Wheel speeds: 495 and 825 RPM
Blade speeds: 2300 and 3250 LFM
Blade width: 1/8" to 3/4"
Blade length: 101"
Table size: 14" x 18"
Table tilt: -5° to 45°
Table height: 38-1/2"
Dust collection outlet: 4''
Dimensions (l x w x h): 20" x 33" x 74"
Weight: 220 lbs
