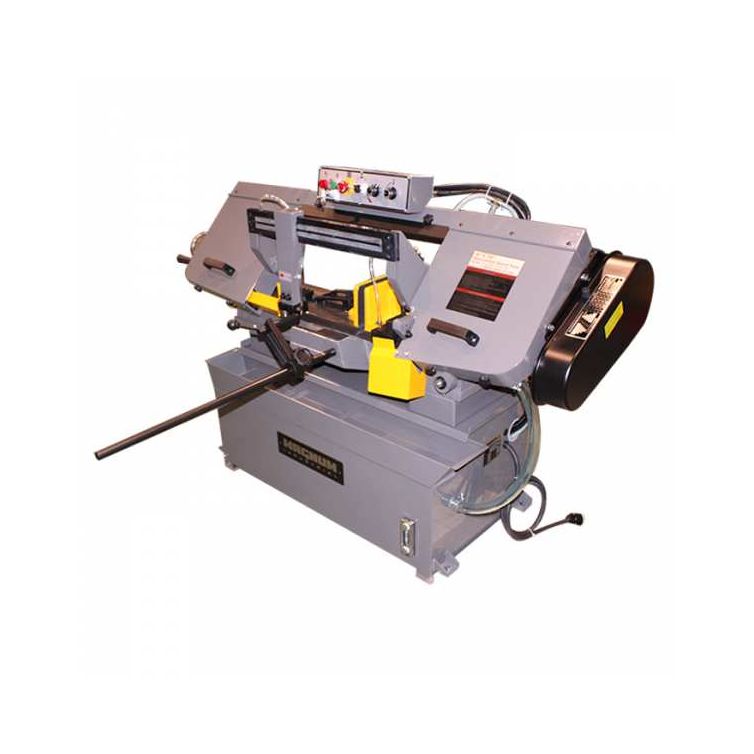

Magnum Industrial 9" x 16" Metal Cutting Band Saw MI-93400

Reg. $3,799.99
$3,499.99
Save $300
  • SKU: MI-93400
  • Model: MI-93400
  • Item Backordered - Order Confirmation Will Quote Ship Time
  • Manufactured by: Magnum Industrial
Qty: Click here for gift cards!
Location
Qty
Coquitlam
More Coming
Abbotsford
More Coming
Langley
More Coming
Chilliwack
More Coming
Kelowna
More Coming
Victoria
More Coming
Kamloops
More Coming
Calgary
More Coming
Grande Prairie
More Coming
Edmonton
More Coming
Red Deer
More Coming

close popup

The Magnum Industrial MI-93400 9" x 16" Metal-Cutting Band Saw makes the cut with its large capacity and heavy-duty design. It's ideal for cutting pipe or solid steel. Reliable and easy to operate, this band saw has a heavy-duty cast frame and base that provides rigidity and long-lasting performance in tough work environments. Other features include vertical head locking with auxiliary table for vertical scroll cutting; built-in coolant pump, tank and recovery tray; heavy-duty wheels; and adjustable blade tension and guide bearings.

spec sheet manual.pdf download manual.pdf

  • Powerful 1.5 HP motor with four speed settings handles a range of metals
  • Blade tension indicator makes blade changes quick and easy
  • Precision ground and balanced cast-iron wheels add mobility
  • Heavy-duty cast frame and base provide rigidity and long-lasting performance
  • Locking head and removable auxiliary table facilitate precise vertical cutting
  • Quick-lock vise secures workpiece when cutting angles
  • Blade tension, guide bearings, and hydraulic downfeed control adjust easily to suit your project
  • Coolant system features built-in pump, tank and oil recovery tray and fine adjust hydraulic feed control
  • Magnetic safety switch includes adjustable automatic shut-off switch
  • Includes chip brush and safety guard
  • Specifications:
  • Cutting capacity at 90º (Rectangular): 9” x 13-1/2” (228 x 343 mm) / 1-1/2" x 16" (38 x 406 mm)
  • Cutting capacity at 45º (Rectangular): 6-1/2" x 9" (165 x 228 mm)
  • Blade size: 1" x 0.032" x 119.5" (25.4 x 0.8 x 3035 mm)
  • Blade speeds: 82, 132, 170, 235 feet per minute
  • Base dimensions (l x w): 67" x 30" (1700 x 762 mm)
  • Motor (pre-wired 115 V): 1.5 HP, 1725 rpm
  • Weight: 650 lbs (295 kg)
