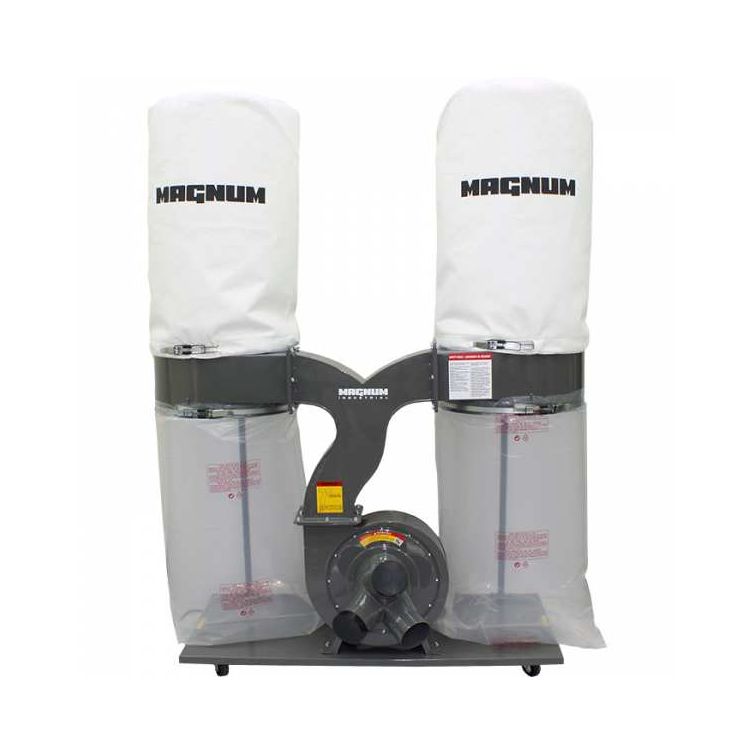

Magnum Industrial 3 HP 4 Bag Dust Collector

Delivering both power and capacity, the MI-11400 features two filter bags, two collection bags and an aluminum anti-spark impeller—driven by a fully enclosed 3 HP motor. This collector is designed to provide central dust collection for a medium-to-large production shop.

One-piece anti-spark impeller reduces fire risk
Rugged double-plated aluminum impeller can handle larger chunks of wood
Impeller shaft designed with high-quality bearings for continuous duty
Fully enclosed continuous-duty 220 volt 3 hp motor draws 12 amps
Metal cowling connects blower to bag to increase efficiency and lower noise levels
High-quality double-stitched 2 micron filter bag traps extra-fine dust from particle board, MDF, cedar and other woods, and most plastics
Filter bags are washable for easy maintenance
Clear plastic bottom bag makes keeping tabs on dust levels simple
Quick-release metal straps secure bags and allow quick bag changes
Built-in swivel-style casters deliver excellent mobility
Safety switch with key provides added security
Specifications:
Motor: 3 HP, 220 V, 1 Ph, 12 amps
Inlet diameter: 3 x 4” (102 mm) or 1 x 6" (152 mm)
Airflow capacity: 2,300 cfm
Impeller diameter: 12” (305 mm)
Sound level: 80 to 95 dBA
Bag diameter: 20" (508 mm)
Bag capacity: 83 gallons (314 litres)
Static pressure (without bag): 16” of water
Overall dimensions (L x W x H): 60"x 32-5/8" x 76"
Weight: 165 lbs (75 kg)
