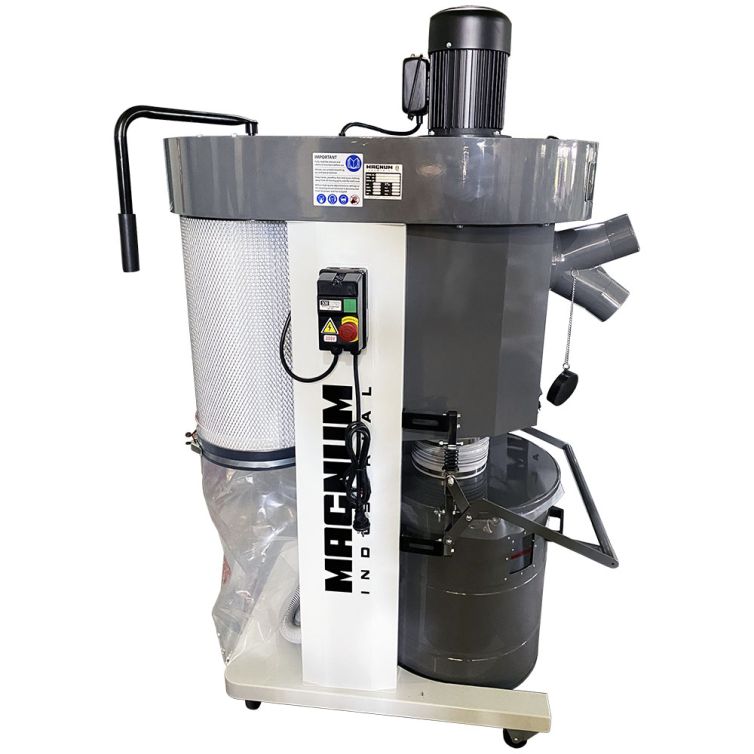

Magnum Industrial 2 HP 2 Stage Cyclone Dust Collector

These Magnum Industrial 2-Stage Cyclone Dust Collectors are for small to medium-sized shops where extra fine filtering is required. Our engineers focused on decibel reduction for quieter operation and still maintaining stronger performance. The Cyclone action directs the larger wood chips and particles into the quick release drum, which extends the life and efficiency of the extra 1-micron filter media. All models include a remote control. CSA approved

• 1-micron extra-fine canister filter with manual self-cleaner level
• Anti-spark fan mounted on continuous duty bearings for extra long life
• Remote control for quick on/off convenience
• Built-in casters for mobility -- all four are swivel type for easy movement
• Totally enclosed continuous duty motor
• Quick-release drum for easy wood chip disposal
• Magnetic safety switch to prevent motor overload and burnout
• Lower decibel design for reduced shop noise

Specifications

• Motor: 2HP, 220V, 1 PH, 9.5A
• Inlet diameter: 1x7" or 3x4"
• Airflow capacity: 1,150 CFM (1,750 CFM nominal)
• Filter canister: 1 micron extra-fine included
• Drum: 29.61 gallon
• Sound rating: 77 dB
• Static pressure (without bag): 11" of water
• Overall height: 5' 10"
• Weight: 172 kg (379 lbs)
• Optional: 99121 HEPA canister filter
