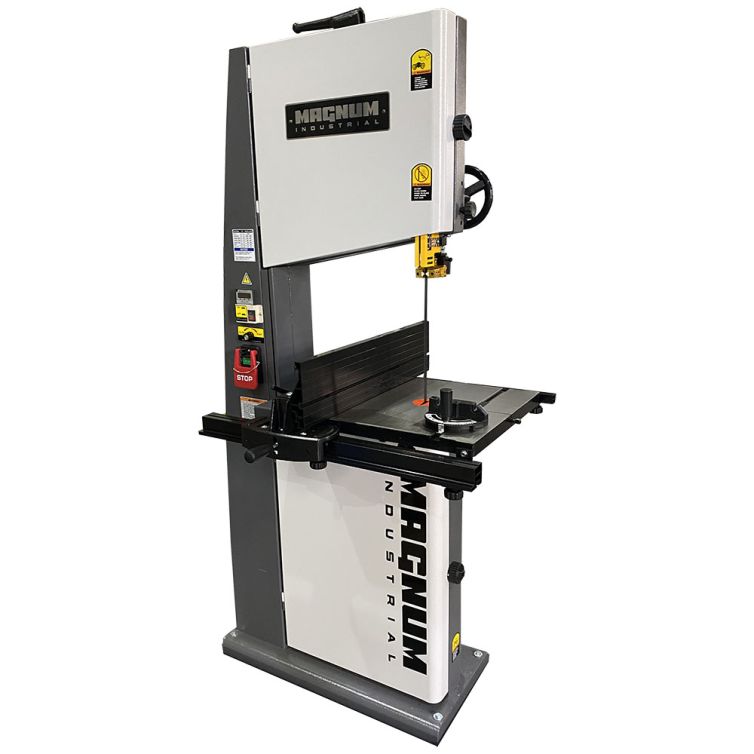

Magnum Industrial 18" Metal / Wood Band Saw

The MI-92300 Metal/Wood Bandsaw is truly our all-terrain bandsaw. The digital inverter offers infinitely variable speed dial control and maintains full torque at slow speeds. Designed primarily for metal cutting, this unit is perfectly capable for all wood and plastic cutting applications. Perfect choice for the handyman and maintenance shops where a variety of materials need to be machined. CSA approved.

• Upgraded blade guides include bearing and ceramic guides
• Variable speed range for metal/wood/plastic cutting
• Dynamically balanced cast iron wheels and one-piece solid welded frame for vibration-free use
• All-ball-bearing guide system is engineered for our top design
• Deflector shield protects tires from iron filings
• Large cast iron table
• Keyed lock out mag switch for security
• Deluxe fence system
• Cast iron mitre gauge
• Engineered dust collection ports for maximum efficiency
• Quick release blade tension lever

Specifications

• Product: metal and wood band saw
• Manufacturer: Magnum Industrial
• Model: MI-92300
• Motor (MI-92300) - 2 HP, requires 220V Single Phase supply
• Motor (MI-92302) - 2 HP, requires 208V Three Phase supply
• Max cutting depth: 12" (305mm)
• Wheel diameter: 18" (457mm)
• Blade speeds: Variable 150-3,000 FPM
• Blade width: 1/8" to 3/4" (3mm to 19mm)
• Blade length: 133" (3,380mm)
• Throat capacity (left of blade): 17-1/2" (445mm)
• Table size: 18" x 18" x 6 (457mm x 457mm x 150mm)
• Table tilt: 0° to 45°
• Table height: 37-1/2" (950mm)
• Net weight: 297 lbs (135 kg)
• Gross weight: 350 lbs (159 kg)

Includes

• Deluxe blade guide system
