Magnum Industrial

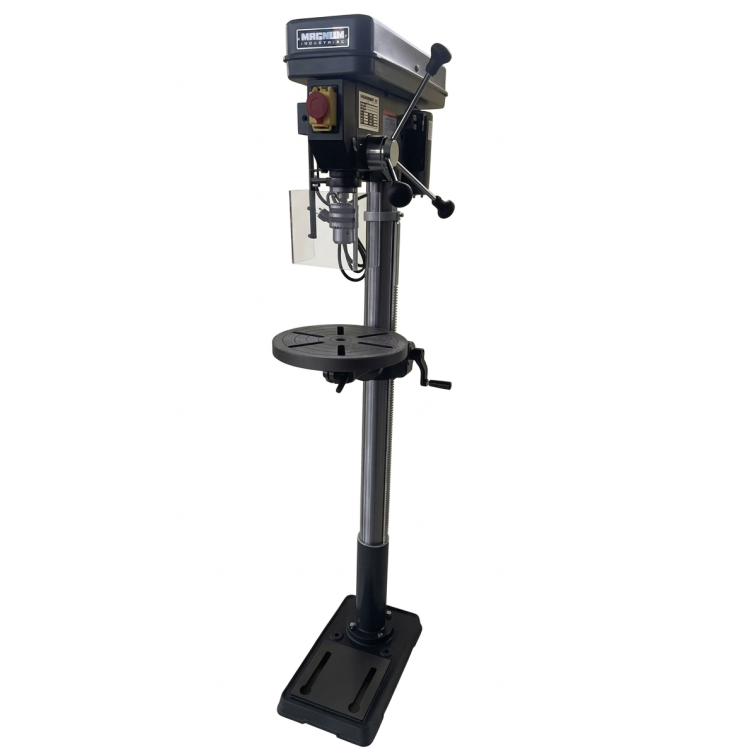

Magnum Industrial 14" Drill Press

Reg. $529.99 Special Price $499.99
In Stock Online
SKU
MI-76150
Model#: 76-150
Check Other Stores
Frequently Bought Together
  • Total price

Details

Introducing the Magnum Industrial 14" drill press, a rugged, powerful and accurate tool with a fully-enclosed 1/2 HP motor that can handle a variety of wood and metal drilling applications. Ideal for a hobbyist or a professional who occasionally requires a drill press, the 76-150 drill press features a laser guide, chuck guard, durable metal hood and built-in work light with a separate on/off switch. Plus it has precision bearings, extra-long handles that allow for better feed control and 12 drilling speeds, from 280 to 3,000 RPM. Magnum Industrial drill presses are constructed to our specs to deliver long life and accurate, vibration-free drilling.

spec sheet manual.pdf download manual.pdf

  • Includes laser light and drill chuck guard
  • 5/8" precision chuck and taper for accurate vibration-free drilling
  • Built-in work light with separate on/off switch
  • Extra-long handles for better feed control
  • Durable metal hood
  • Positive drill stop for improved depth control
  • Full range of spindle speeds, from 280 to 3,000 RPM
  • Precision bearings for accurate drilling and long life
  • Ideal for drilling wood and metal
  • Unique safety interrupter switch deactivates machine during a power outage and requires manual restart when power returns
  • Specifications:
  • Motor: 1/2 HP, 110 V, 8 A
  • Drilling capacity: 5/8” (16 mm)
  • Chuck size: 5/8” (16 mm)
  • Spindle travel: 3-1/8” (80 mm)
  • Spindle distance to table: 31” (787 mm)
  • Spindle distance to base: 48” (1219 mm)
  • Table size (diameter): 11-3/8” (289 mm)
  • Column diameter: 2-7/8” (73 mm)
  • Spindle speeds: (12) 280 to 3,000 RPM
  • Spindle / Chuck taper: MT2 / JT3
  • Overall height: 62” (1575 mm)
  • Base size: 10” x 16-7/8” (254 x 429 mm)
  • Swing: 13-3/8’’ (340 mm)
  • Weight: 125 lbs
