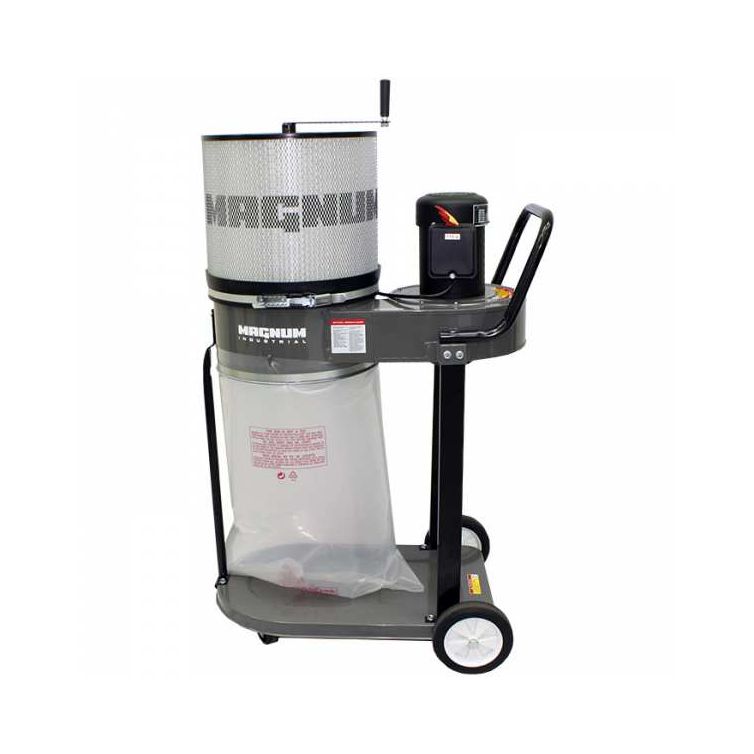

Magnum Industrial 1 HP Dust Collector with Canister

Flyer Sale
SKU: MI-11150 Model Number: 11-150
In Stock Online

Selected Location

Other Locations

The MI-11150 mobile dust collector comes standard with a 1 micron canister that filters extra-fine dust from particle board and cedar. It also has built-in swivel-style casters, so it can be positioned close to your table saw or sander to collect dust at the source. For smaller shops with one or two pieces of machinery, the MI-11150 provides both efficient dust collection and excellent filtration.

spec sheet manual.pdf download manual.pdf

  • 1 micron filter canister traps ultra-fine particles including dust from particle board, MDF, cedar and other woods, and most plastics
  • Canister filter with built-in lever shaker makes cleaning easy
  • Impeller shaft designed with high-quality bearings for continuous duty
  • Fully enclosed continuous-duty 1 hp motor draws 7 amps
  • Clear plastic bottom bag with quick-release straps makes keeping tabs on dust levels simple
  • Built-in swivel-style casters deliver excellent mobility
  • Safety switch with key provides added security
  • Specifications:
  • Motor: 1 HP, 110 V, 1 Ph, 7 A
  • Inlet diameter: 4” (102 mm)
  • Airflow capacity: 550 cfm
  • Impeller diameter: 10” (254 mm)
  • Sound level: 80 dBA
  • Canister filter size: 14-1/2"x 11-3/4" (370 x 300 mm)
  • Filter area: 20.33 sq-ft
  • Bag diameter: 15"(381 mm)
  • Bag capacity: 20 gal. (90.9 L)
  • Static pressure (without bag): 6.5” of water
  • Weight: 67 lbs (31 kg)
