Magnum Industrial 1/2 HP Metal Dust Collector - 472 CFM 12-910

Super Special

Reg. $1,219.99
$1,099.95
Save $120
  • SKU: MI-12910
  • Model: 12-910
  • ✓ In Stock Online
Qty: Buy Online, Pick Up In Store

FREE

Click here for gift cards!
Location
Qty
Coquitlam
2
Abbotsford
1
Langley
2
Chilliwack
1
Kelowna
1
Prince George
1
Victoria
2
Kamloops
1
Calgary
2
Grande Prairie
1
Edmonton
2
Red Deer
1

close popup

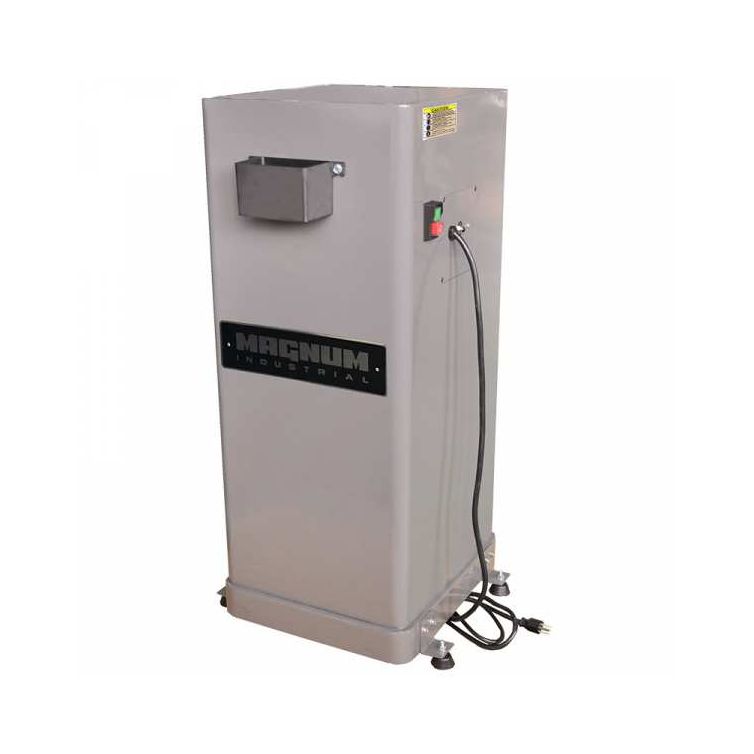

The Magnum Industrial MI-12910 Metal Dust Collector is a space-saving, effective solution to airborne metal filings and dust. Its 1/2 HP motor moves up to 472 CFM of air, collecting shavings and debris via its 5" inlet, which is split to accommodate two hoses. This unit is equipped with a non-flammable filter and easy-to-empty drawer, which holds the debris. In addition, the MI-12910 is designed to save space—it doubles as a stand and can support machinery up to 300 lbs. CSA approved.

spec sheet manual.pdf download manual.pdf

  • Stand holds up to 300 lbs, so you can mount a grinder or sander onto the metal dust collector
  • Easy-to-empty drawer holds filings and shavings captured by the dust collector
  • Anti-spark filter media is non flammable
  • Onboard storage trays provide convenient access to water or paste
  • Includes filter, reducer, inlet caps, and brackets for mounting on the floor

Specifications

  • Motor: 1/2 HP, 115V, 1Ph, 2.8 Amps
  • Motor speed: 3,450 rpm
  • Blower wheel diameter: 6.7"
  • Air flow capacity: 472 CFM
  • Static pressure: 2.44" of water
  • Inlet: 5"
  • Inlet with wye: 1 x 2" / 1 x 3"
  • Noise output: 75 dB at 10'
  • Filter dimensions: 6-3/4" x 2-5/8" x 13-1/2"
  • Filter efficiency: 90% @ 50 microns
  • Overall dimensions: 15-1/2" x 16" x 32-1/4"
  • Weight: 110 lbs
