Kreg

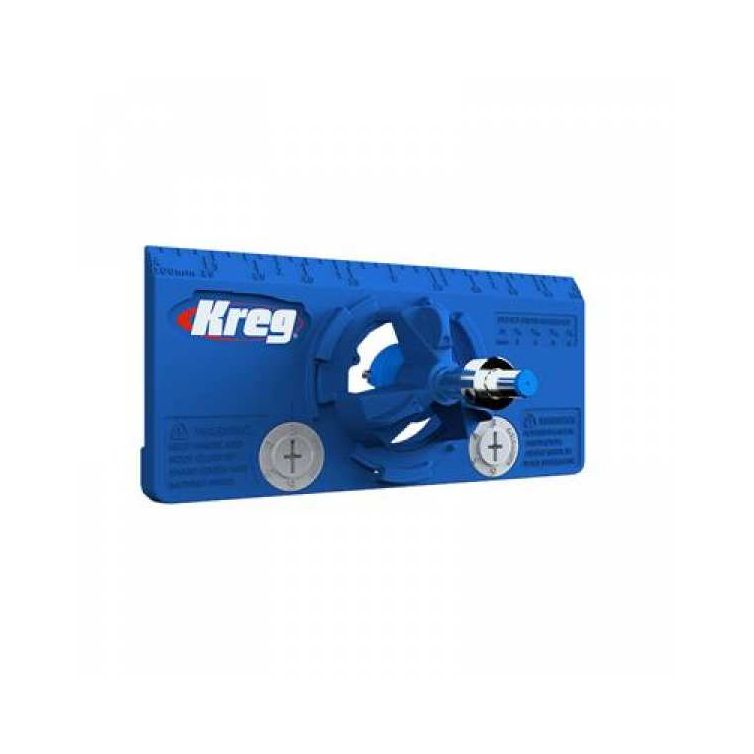

Kreg Concealed Hinge Jig

$42.00
In Stock Online
SKU
KRE-KHIHINGE
Model#: KHI-HINGE
Check Other Stores
What is MAP Pricing?

When you see MAP, this means the manufacturer has instituted a Minimum Advertised Price, which is the lowest price we are permitted to advertise the product online. Please contact us to get a "KMS Tools Price" quote.

Frequently Bought Together
  • Total price

Details

The Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. This easy-to-use jig ensures accurate hinge alignment, so you can install doors that fit great and work well. Plus, the Concealed Hinge Jig works with an ordinary drill and the included carbide tipped bit.

  • Accurate hinge positioning with built-in indexing tabs
  • Repeatable results with built-in measuring scales
  • Reliable drilling with bit guide and stop collar
  • Simple to use with any drill—no special tools needed
  • Adjustable cams ensure proper hinge offset
  • Durable carbide-tipped drill bit included
  • Strong, lightweight materials for easy handling
  • Specifications:
  • Hinge compatibility: 35mm cup-style concealed hinges
  • Construction: Durable glass-filled nylon
  • Hinge offset: 3mm, 4mm, 5mm, 6mm
  • Hinge offset from Door End: 2" (50mm) to unlimited
  • Included drill bit: Four-cutter carbide-tipped with stop collar
  • In the box: (1) jig base with index cams, (1) drill guide, (1) 35mm carbide-tipped drill bit, (1) stop collar with hex wrench
