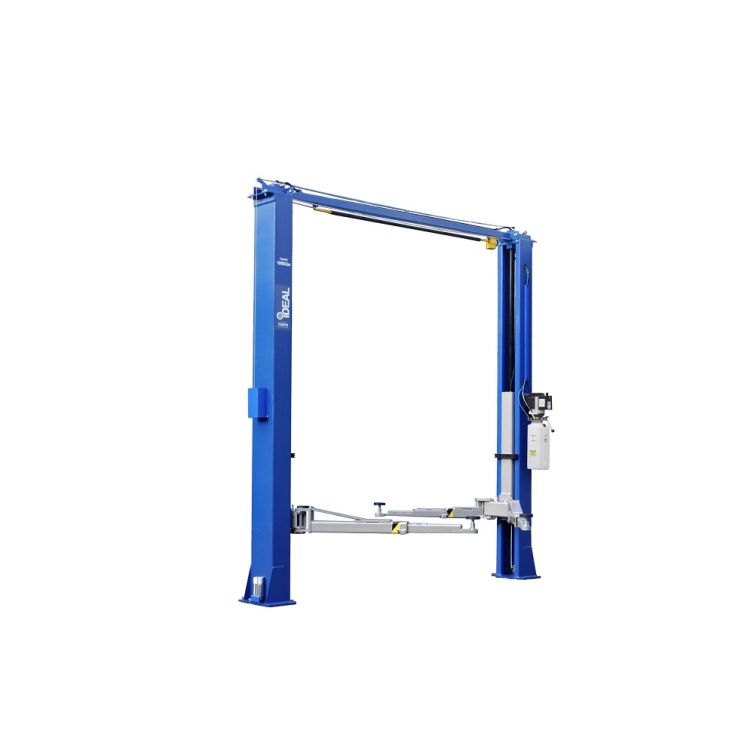

Tuxedo iDEAL Two Post Clear Floor Lift

Features

• ALI certified
• 10,000 lbs capacity
• Bi-Symmetric arm design
• Rubber Door Guards
• 3 Stage Front Arms
• Single Piece Column
• Direct Drive pull Cylinders
• Single Point Lock Release
• Heavy Duty Arm Restraint System
• Spin Up Low Profile Lift Pads
• Stackable Adapters Included
• External hose guards
• Duro Certifed Power Unit – MET, UL, CSA
• ALI certified for commercial and school use

Specifications

• Lift Model: TP10KAC-DX
• Capacity: 10,000 lbs.
• Height Overall: 144″
• Width Overall: w/ Power Unit 145-1/2″
• Max Lift Height: 71″
• Width Between Columns: 116″
• Min. Pad Height" 4″
• Drive Thru Clearance: 104″
• Lifting Speed: 50S
• Asymmetric / Symmetric: Bi-Symmetric
• Clear Floor / Floor Plate: Clear Floor
• Short Arm Reach – min/max 23″-45″
• Long Arm Reach – min/max 41″-59″
• Narrow Bay Setting: NA
• Max Load Per Arm: 2,500 lbs
• Ship Weight: 1,705 lbs
• Power: 220V – 20 AMP – 1 PH

Click Here for Manual
