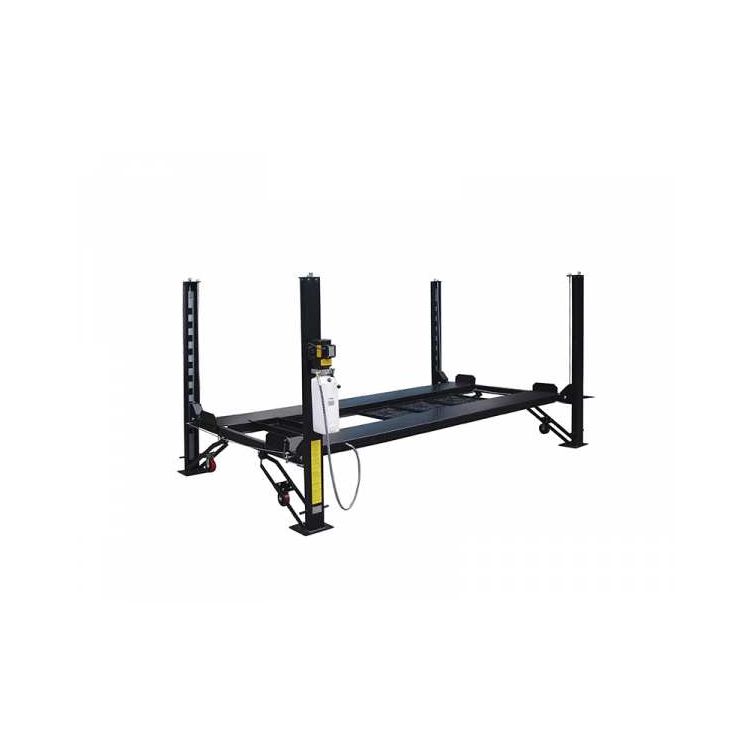

Tuxedo 4 Post Storage Lift

Introducing the New 8,000 lb. DX Storage Lifts!! The FP8K-DX 4 post storage lift comes standard with poly casters and drip trays, along with a jack/tool tray, making these models one of the best service & storage lift values in the industry!

• High quality storage/parking Lift
• Slack-cable/safety device system
• Internal lock ladder design
• Non-skid diamond plate runways
• Adjustable lock ladder leveling
• Single point, manual lock release
• Powder coat finish
• Steel approach ramps
• Recommended for home or non-commercial use only. For commercial and school use see Tuxedo iDEAL Two Post Clear Floor Lift which is ALI Certified.

Specifications

• Lifting Capacity: 8,000 lbs
• Lifting Height: 74.8”
• Overall Length w/ Ramps: 207.3”
• Overall Length/ No Ramps: 175.5”
• Overall Width: 103.5”
• Runway Tread Width: 18.7”
• Runway Length: 165.5”
• Runway Height: 4.3”
• Column Height: 86”
• Clearance between Columns: 94.4”
• Clearance between Runways: 37.2"
• Outside Runway to Outside Runway: 74.8”
• Clearance Under Runways: 70”
• Drive Thru Width: 80”
• Locking Positions: 10
• Base Plate Size: 10” x 12”
• Power: 115V-20 Amp/1PH
• Ship Weight: 1,695 lbs

Includes

• Caster kit
• Jack/tool tray
• Drip trays
