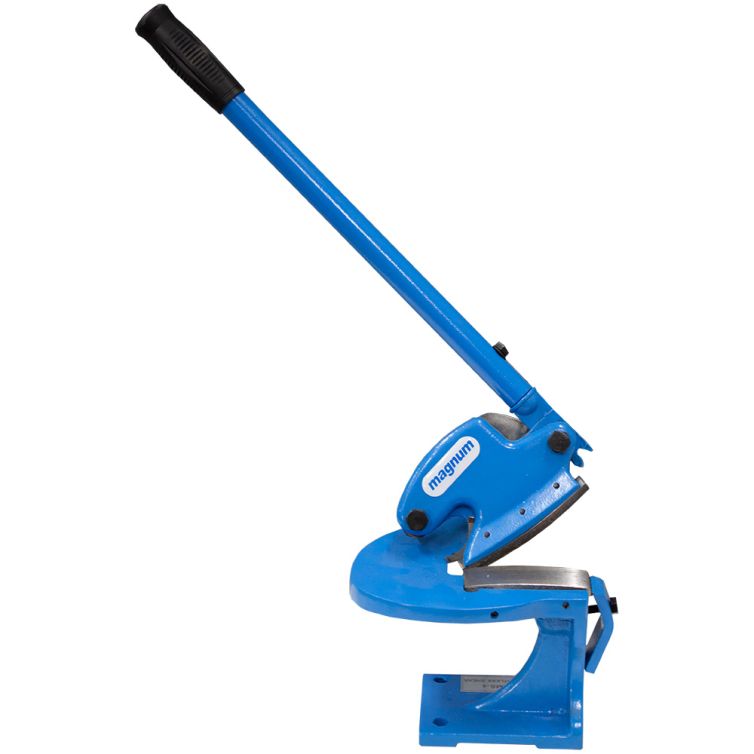

Magnum Throatless Multi-Purpose Manual Shear (MMS4)

Navigate intricate curves and irregular shapes in sheet metal with total freedom. The Magnum MAG-MMS4 features an exclusive shoulder design that allows you to turn the workpiece in any direction during the cut. An alloy steel rack and pinion mechanism multiplies your force, making burr-free cuts in 2mm steel a breeze .

Features

• Throatless shoulder design - permits unrestricted material rotation for cutting complex curves and circles .
• Rack and pinion gearing - multiplies handle force to effortlessly slice through 2mm mild steel .
• Adjustable highest-grade blades - ensures a clean, burr-free edge and allows for compensation as blades wear .
• Removable handle - makes the shear easy to transport or store out of the way .

Specifications

• Length of Cut: 2.75" (70 mm)
• Lower Blade Length: 4.1" (105 mm)
• Capacity (Mild Steel): 2.0 mm
• Capacity (Stainless Steel): 1.5 mm
• Handle Length: 17.4" (442 mm)
• Packing Dimensions: 20" x 13" x 8.6" (51 x 33 x 22 cm)
• Net Weight: 17.6 lbs (8 kg)
• Supplier Part Number: 372504
• KMS Product Code: MAG-MMS4

Common Shop Applications

• Cutting internal circles and organic shapes in 2mm sheet steel .
• Trimming 1.5mm stainless steel fabrication panels .

Recommended Shop Add-Ons

• Most fabricators also grab: Machinist Square - to ensure perfectly straight cuts when needed.
• Our auto body experts suggest: Sheet Metal Deburring Tool - cleans up any micro-burrs left on complex inside curves.

Q: Can it be bolted to a table? A: Yes, the steel base is pre-drilled for easy mounting to a stand or workbench .

Q: Does it cut completely burr-free? A: When the blades are properly adjusted and tight, it provides clean, burr-free cutting.
