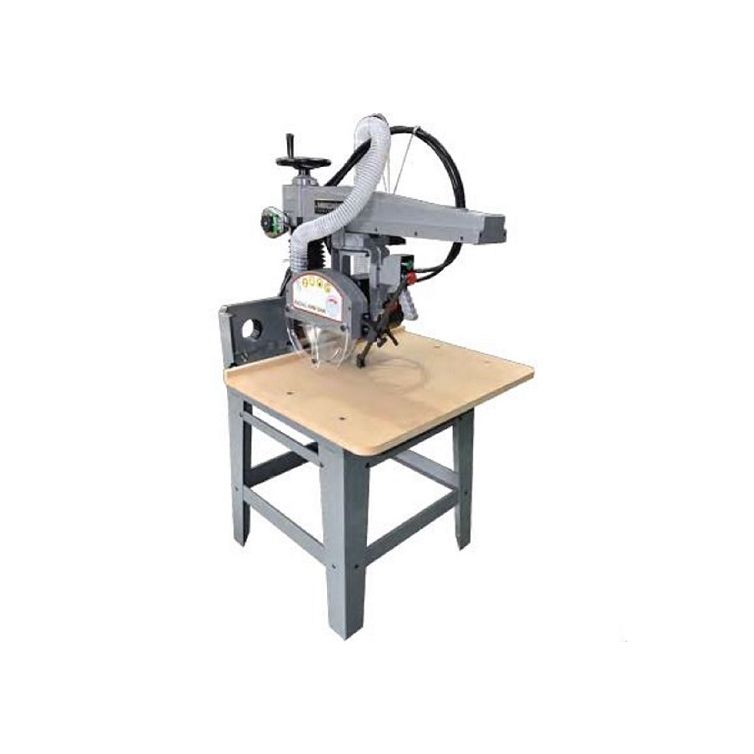

Magnum Industrial 12" Heavy-Duty Radial Arm Saw

The Magnum Industrial 12" Heavy-Duty Radial Arm Saw is loaded with safety features. Designed for production and continuous duty, the MI-53200 will impress you with its castings and overall construction. Maintaining accuracy and making fine adjustments is very simple for this well-designed model, which is great for cross cutting, beveling, large timbers, aluminum and plastic extrusions.

• Anti-kickback riving knife prevents overfeeding and jamming
• Blade break brings blade to a stop within seconds of power shut-off
• European design safety guard is approved by the highest standards
• Automatic motor return spring moves motor back to safety position
• Built-in dust collection ports helps control dust and chips
• One 12" negative rake GP carbide blade included
• CSA approved magnetic safety switch; includes keyed lock-out to prevent unauthorized usage

Specifications

Motor / with brake: 2 HP, 220V, 60Hz, 1 PH
Motor speed: 3,420 RPM
Arbor: 5/8" (16 mm) w/ 1" (25 mm) bushing
Blade: 12" (305 mm) blade, 1" (25 mm) bore
Max cutting depth
at 90°: 3" (76 mm)
at 45°: 2-1/4" (57 mm)

Crosscut capacity
at 3" (76 mm): Max 14-1/8" (360 mm)
at 1" (XX mm): Max 16" (407 mm)
Rip cut capacity: 26-3/8" (670 mm)
Dado capacity: 1-1/4" (31 mm)
Bevel positive stops: 0°, 45°, 90°
Miter positive stops: 90°, 45° left & right
Wood table: 27.5" x 35.4" (700 x 900 mm)
