Safety Speed Cut

Safety Speed Cut H5 Panel Saw

SKU: SAF-H5 Model Number: H-5
Limited Qty Online

Selected Location

Other Locations

The popular H5 panel saws are ideally suited for customers looking for a full sized vertical panel saw at an affordable price. This saw has a crosscutting height of 64? while delivering an accuracy of 1/32? straight and square. With 3 1/4 Hp industrial motors, these versatile saws are used in a variety of panel cutting operations.

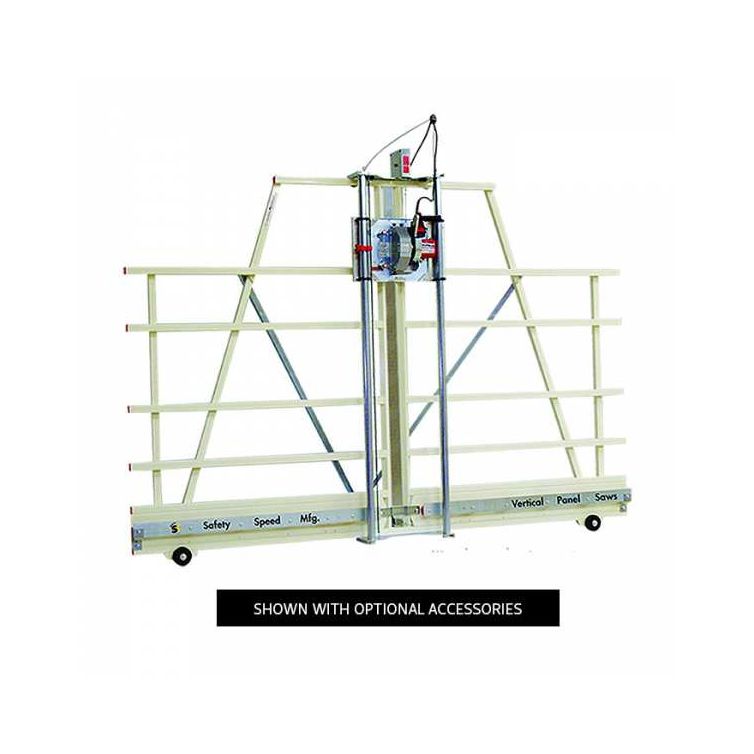

  • Optional Asscessories Shown:
  • Fixed Stand - SAF-H20 (Special Order)
  • Wheel Set - SAF-H10 (Special Order)
  • 3 ¼ Hp, 15 amp industrial duty saw motor
  • Zinc plated 1 ¾”steel guide tubes
  • 4 Nylatron roller bearing systems
  • Adjustable vertical and horizontal rulers
  • Quick change from vertical to horizontal cutting
  • Thin material pressure guard
  • Injection-moUlded plastic material rollers
  • Spring loaded counter balance system
  • Integrated dust collection bonnet
  • TUV certified to UL/CSA standards
  • Specifications:
  • Max. Crosscut - 64"/1625mm
  • Max. Rip Cut - Unlimited
  • Max. Cut Thickness 1¾"/45mm
  • Cut Accuracy, Straight and Square - 1/32"/0.8mm
  • Saw Blade Diameter - 8"/200mm
  • Motor - 120V, 15amp
  • Frame Length - 120"/3050mm
  • Shipping Weight - 298 lbs./ 145 kg
Manufacturer
Safety Speed Cut
Manufacturer SKU
H-5
