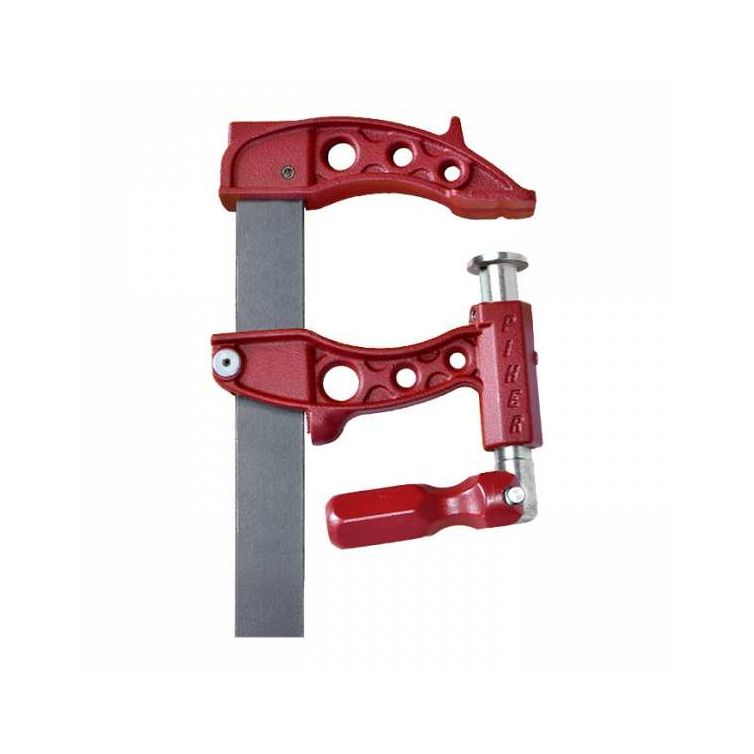

Piher 24" x 5" F-Bar Welding Clamp

Extra resistant rolled steel bar 35 mm x 8 mm
Maximum pressure 9,000N
Throat deep 12 cm
Covered screw thread
The new handle, both dismountable and interchangeable
With greasing hole
Rolled spring steel bar which gives maximum pressure held throughout the whole job.
Nodular cast iron jaws
Covered double threaded screw which doubles both the pressure and the speed with a greasing hole for optimum lubrication and a new dismountable, interchangeable new easy grip handle.
The surface of the fixed jaw is grooved to achieve maximum grip on angled pieces, tubes,etc
The moving jaw is kept firmly in position thanks to the spring activated brake at the back.
