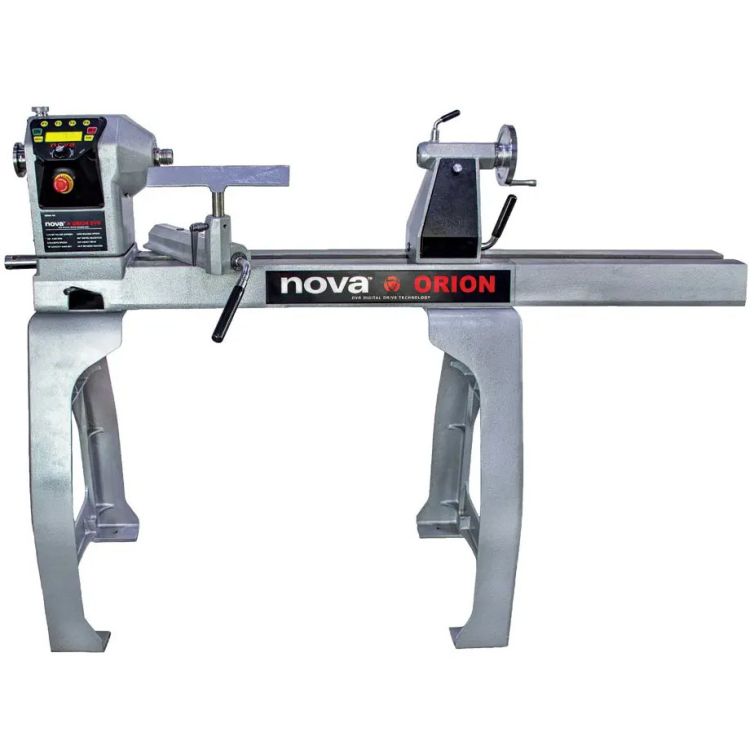

Nova Orion 18" DVR Lathe
Details
This lathe combines the best features of larger lathes - power, capacity and capability with state-of-the-art technology to make your turning more efficient, fun and safer. Great for those who need all the workshop space they can get. The lathe can be configured with a compact footprint or using the bed extension (included as standard) the Orion can be made longer to suit longer projects as needed.
The swivel head and articulated Outrigger Accessory, together with the flexible bed configuration, means that even when turning large bowls (29"), you are still turning in the same compact area. With no pulleys or belts to vibrate, the Award-Winning DVR Direct Drive Motor powered by STRIATECH is incredibly smooth and delivers intelligent control to your turning experience.
- Electronic auto braking
- Speed selection chart
- 8 favourite speed settings
- Speed ramp profiles
- Idle motor detection
- Upgradeable firmware
- Emergency stop
- Vibration sensing
- Maximum torque at low RPMs
- 360° swivel headstock
Specifications
- Motor: 1.75 HP 110V / 2HP 220V DVR Direct Drive Motor
- Speed setting: 100 to 5,000 RPM
- Bowl turning capacity: 18" (457mm) inboard, 29" (736mm) outboard (using optional outrigger accessory)
- Between centres: Standard 45.25" (1149.35mm) with included extra Bed Extension or 22.75" (577.85mm) in the compact configuration
- Spindle thread: 1-1/4" x 8TPI RH
- Tailstock: Self-Ejecting 2MT Hollow
Includes
- Headstock Assembly
- Tool Slide Assembly
- Tailstock Assembly
- Main Bed
- Bed Extension*
- Lathe stand
- 12" (300mm) Tool Rest
- Knockout/Operating Bar
- 2MT Spur Centre
- 2MT Live Centre
- 6" (150mm) Face Plate
- 3mm Allen Key
- 10mm Allen Key
