Mityvac

Mityvac Automotive Tune-Up and Brake Bleed Kit

SKU: MV-8000 Model Number: MV8000
In Stock Online

Selected Location

Other Locations

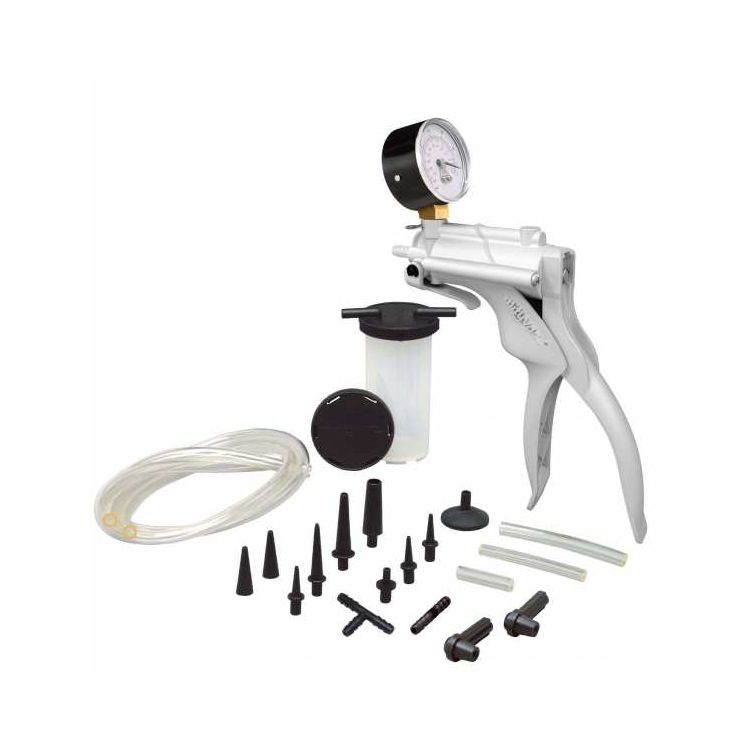

This is the original Mityvac hand vacuum pump kit used by service professionals worldwide for performing hundreds of automotive diagnostic and mechanical tests and for one-person brake bleeding. The MV8000 kit contains the popular Selectline hand vacuum pump with vacuum gauge and accessories.

  • Kit includes:
  • Selectline hand vacuum pump (Model No. MV8010) with 2" (50 mm) diameter gauge
  • 4.5 oz. (135 ml) fluid reservoir bottle with fluid transfer and storage lids
  • (7) Tapered adapters for connecting to tubing from .090" to .50" ID (2.3 mm to 13 mm)
  • (2) Tapered manifold plugs
  • (3) Bleed screw adapters
  • (2) 1/4" ID x 24" long (6.4 mm ID x 610 mm long) connection tubes
  • 5/32" ID x 1/4" ID (4 mm ID x 6.4 m ID) tubing adapter
  • 1/4" ID x 1 1/2" long (6.4 mm ID x 40 mm long) connection tube
  • 5/32" ID x 3" long (4 mm ID x 75 mm long) connection tube
  • 1/4" ID x 3 5/8" long (6.4 mm ID x 90 mm long) connection tube
  • Rubber cupped adapter
  • User manual (English/French/Spanish)
  • Specifications:
  • Packaged Weight: 1.2 lbs (0.54 kg)
  • Packaged Size: 12" x 10" x 1 1/4" (305 mm x 250 mm x 32 mm)
  • Pump Displacement: 1 cu. in. (16 cc) per stroke
  • Max. Vacuum: 25 in. Hg (85 kPa)
  • Max. Pressure: 25 psi (172 kPa)
  • Gauge Indication: 0 - 30 in. Hg (0 - 100 kPa)
Manufacturer
Mityvac
Manufacturer SKU
MV8000
