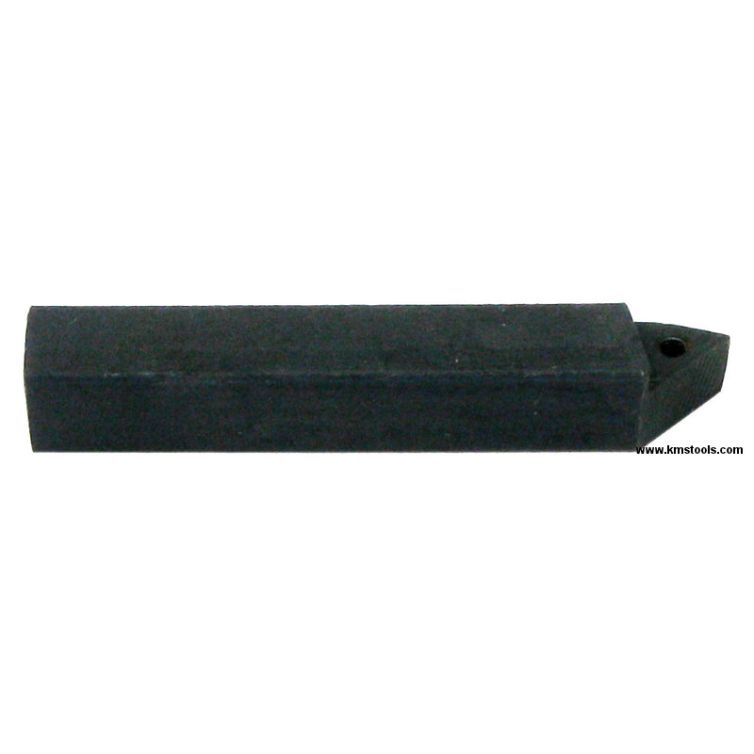

Magnum 1/4 Inch Insert 3/8 Inch Shank Indexable Tool Holder (AR6)

Eliminate inconsistent tool geometries caused by manual grinding with this right-hand indexable tool holder. Built with a solid 3/8-inch steel shank, it resists intense bending moments while securely fastening 1/4-inch carbide inserts. The AR-style approach angle is optimized for turning up to a square shoulder, providing the structural rigidity and positive locking required for aggressive material removal in steel and cast iron.

Features

• Retention - Integrated screw clamping provides a positive lock to prevent insert shifting.
• Structural - Solid 3/8-inch (9.52 mm) shank resists bending moments during heavy cuts.
• Configuration - AR-style approach angle optimizes right-hand turning to a square shoulder.

Specifications

• Product Type: Indexable Tool Holder with Screw
• Insert Size: 1/4" (6.35 mm)
• Shank Size: 3/8" (9.52 mm)
• Material: Hardened Steel
• Supplier Part Number: AR6
• KMS Product Code: MAG-THIC14AR6

Common Shop Applications

• Right-hand turning to square shoulders
• High-volume production turning in steel
• Facing operations on engine lathes

Recommended Shop Add-Ons

• Most Pro Machinist also grab: 1/4 Carbide Insert Set - it keeps your shop productive with fresh edges.
• You'll also need: Lathe Cutting Oil - it reduces heat and friction during aggressive AR-style cuts.

Frequently Asked Questions

Q: What size hex key does the screw lock require? A: This typically uses a standard T8 or T10 Torx or small hex key included with the tool.

Q: Can I use this for facing? A: Yes, the AR geometry is excellent for both longitudinal turning and facing toward the center.
