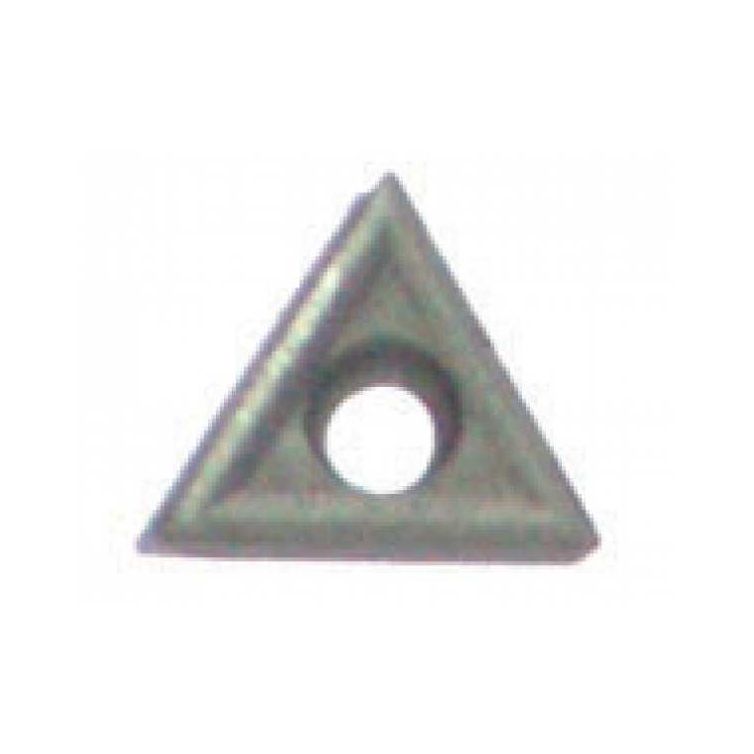

Magnum Indexable C6 Carbide Insert, 1/4" - CI14

Provides a fresh cutting edge for metal lathe turning applications without the need for sharpening. The Magnum MAG-CI14 is a 1/4" indexable insert made from C-6 grade carbide for consistent material removal.

Features

• Indexable Design - Allows the user to rotate the insert to a fresh cutting edge when worn
• Material - C-6 grade carbide handles general purpose machining on steel and steel alloys

Specifications

• Size: 1/4"
• Insert Grade: C-6 Carbide
• Supplier Part Number: R340-1006
• KMS Product Code: MAG-CI14

Includes / Compatibility

• Compatibility - Designed for use with Magnum indexable bit holders: MAG-THIC14AL6, MAG-THIC14AR6, MAG-THIC14BL6, MAG-THIC14BR6, and MAG-THIC14E6

Common Shop Applications

• Replacing worn cutting edges on indexable lathe tools
• General purpose turning on standard shop lathes

Recommended Shop Add-Ons

• Magnum Quick Change Tool Post
• Cutting Fluid

Frequently Asked Questions

Q: What is the advantage of an indexable insert? A: Indexable inserts eliminate the need for tool sharpening; when an edge becomes dull, the insert is simply rotated to expose a fresh cutting surface.

Q: What materials are C-6 carbide tips rated for? A: C-6 grade carbide is commonly used for general purpose machining of steel and steel alloys.
