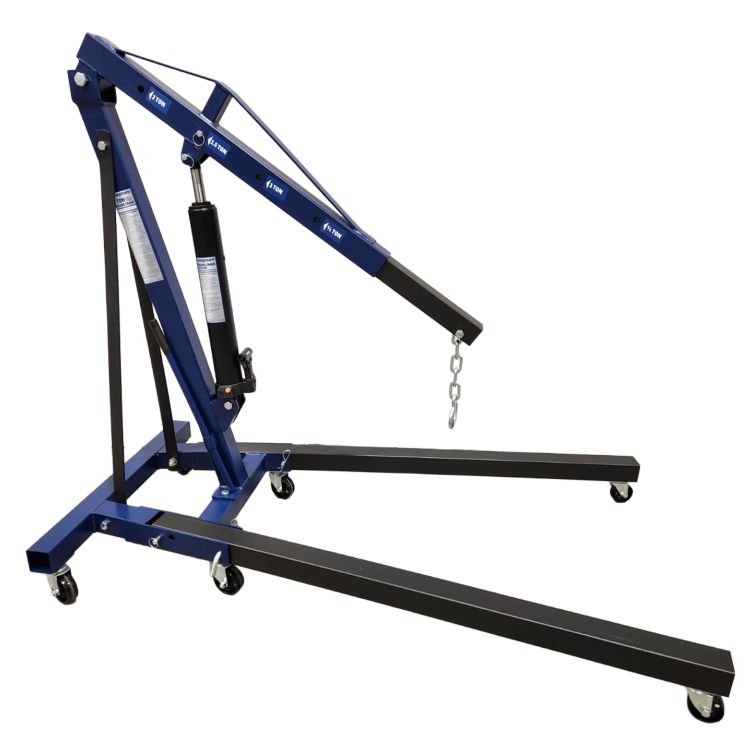

Magnum 2 Ton Folding Hydraulic Engine Crane (TH72004)

Pull and install engines safely with this high-capacity, space-saving hydraulic shop crane. The Magnum MAG-TH72004 offers a 2-ton maximum lift and a folding frame that tucks away when not in use, making it perfect for smaller garages. Its adjustable boom features four weight-rated positions, providing the reach needed for most truck and car engine bays .

Features

• 2 Ton Lifting Capacity - Heavy-duty hydraulic ram handles large engine and transmission assemblies .
• Folding Frame Design - Legs fold upward for compact storage against a shop wall .
• 4-Position Telescopic Boom - Clearly marked weight ratings for 1/2, 1, 1-1/2, and 2-ton settings .
• Six Swivel Casters - Allows for smooth movement and precise positioning while under load .

Specifications

• Max Capacity: 2 Tons (4,000 lbs)
• Max Lift Height: 86-5/8"
• Boom Reach: Adjustable between 4 weight settings
• Shipping Weight: 194 lbs (88 kg)
• Supplier Part Number: TH72004
• KMS Product Code: MAG-TH72004

Common Shop Applications

• Removing and installing vehicle engines and transmissions.
• Lifting heavy shop machinery or workbenches.

Recommended Shop Add-Ons

• You'll also need: Engine Leveler – Essential for balancing the load and tilting the engine into position .
• Our Shop experts suggest: Engine Stand – Immediately transfer the engine to a stand for safe storage and work .

Frequently Asked Questions

Q: Can I move the crane with the engine at full height? A: No, always lower the load to the lowest possible point before moving to maintain stability and prevent tipping .

Q: How do I store the crane properly? A: Remove the locking pins on the legs, fold them into the upright position, and secure them with the pins provided.
