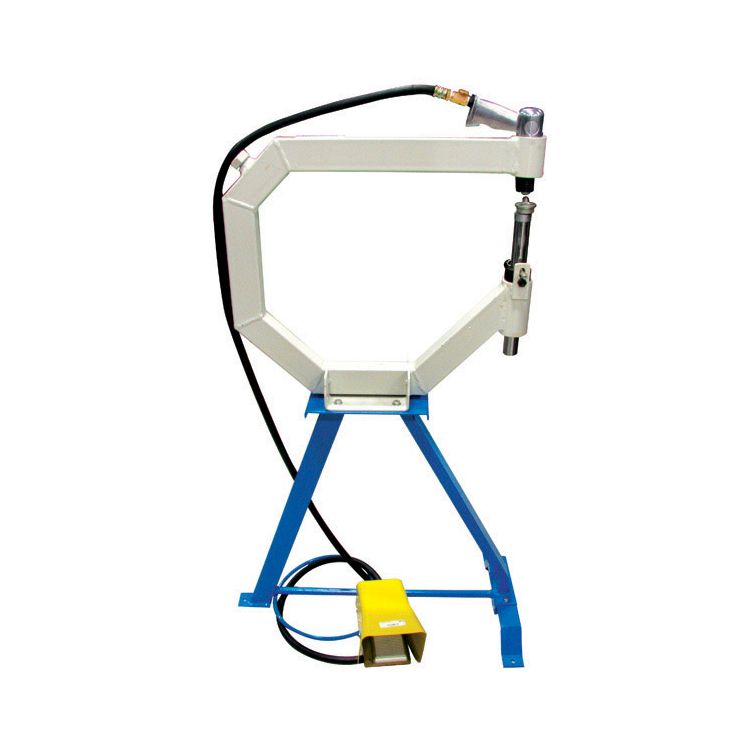

Magnum 20" Throat Pneumatic Planishing Hammer (PPH-500)

Smooth out welds and form complex panel curves with industrial speed. The MAG-PH provides 20 inches of throat depth, allowing you to reach the center of large body panels, hoods, and roofs while maintaining precise control over anvil pressure.

Features

• Quick-Adjust Anvil - Allows for rapid height and pressure changes to suit different material thicknesses.
• Variable Speed - Operates between 875-1350 RPM for everything from heavy shaping to fine finishing.
• Deep Throat - 500mm depth handles large panels that smaller hammers can't reach.

Specifications

• Throat Depth: 20" (500 mm)
• Operating Pressure: 50-100 PSI (4 CFM)
• Speed: 875-1350 RPM
• Anvil-to-Hammer Opening: 4"
• Weight: 50.7 lbs (23 kg)
• Supplier Part Number: PPH-500
• KMS Product Code: MAG-PH

Includes

• 3 Anvils (1", 2", and 3" Radii)
• Foot Pedal Control

Recommended Shop Add-Ons

• You'll also need: Air Filter Regulator – Consistent, clean air is vital for pneumatic hammer longevity.
• Don't forget: Ear Protection – Planishing hammers are high-decibel tools; protect your hearing.

Frequently Asked Questions

Q: What size air compressor do I need? A: You need a compressor capable of maintaining at least 4 CFM at 90 PSI for continuous operation.

Q: Can I form 18-gauge steel? A: Yes, this hammer is ideal for mild steel up to 18-gauge and aluminum up to 16-gauge.
