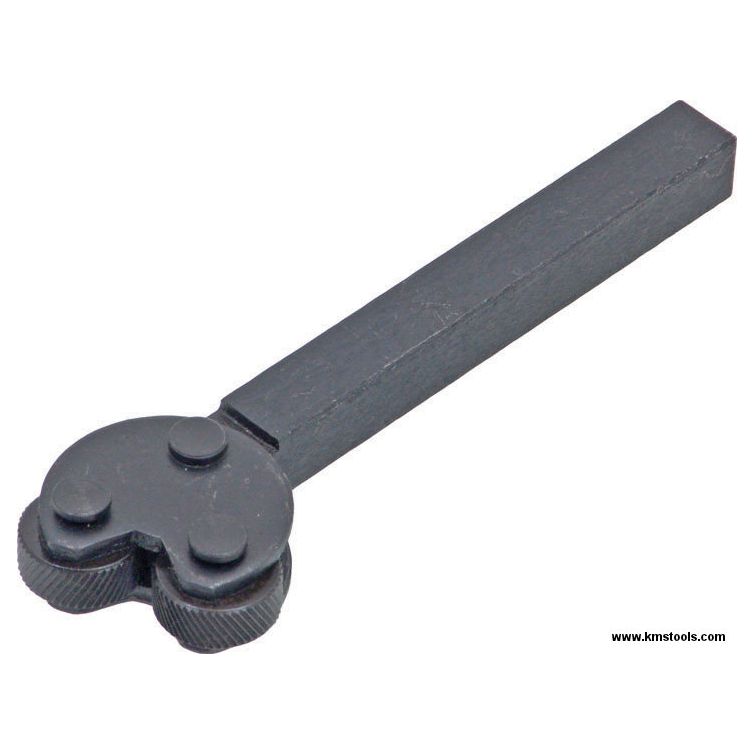

Magnum Lathe Knurling Tool Pivot Head (KTPH)

Achieve professional diamond or straight knurl patterns with the stability of a pivot-head design. This knurling tool holder allows the head to self-center on the workpiece, ensuring even pressure on both wheels and preventing the "ghosting" or double-tracking common with rigid tools. Built from industrial steel, it handles the high lateral forces required to displace material on everything from aluminum knobs to steel shafts.

Features

• Pivot-Head Action - Automatically centers on the workpiece for uniform pattern depth.
• Industrial Rigidity - Heavy-duty steel shank resists deflection under significant knurling pressure.
• Universal Shank - Fits standard 1/2" or larger lathe tool posts and quick-change holders.
• Twin Wheel Setup - Designed for standard knurl wheels to produce a clean diamond pattern.

Specifications

• Product Type: Knurling Tool
• Head Style: Pivot / Self-Centering
• Shank Size: Standard (check specific dimensions)
• Supplier Part Number: KTPH
• KMS Product Code: MAG-KTPH

Common Shop Applications

• Adding grip texture to handles, knobs, and adjustment screws.
• Repairing oversized shafts by displacing material for a press fit.

Recommended Shop Add-Ons

• You'll also need: Knurling Wheels - Choose coarse, medium, or fine patterns for your tool.
• Most machinists also grab: Sulfur-Based Cutting Oil - Essential for lubricating the wheels to prevent galling.

Frequently Asked Questions

Q: Does this include the wheels? A: Most pivot heads come with one set of wheels installed, but we recommend buying spares in different pitches.

Q: How do I prevent double-tracking? A: Start with heavy initial pressure and ensure the pivot head has enough room to move and center itself.
