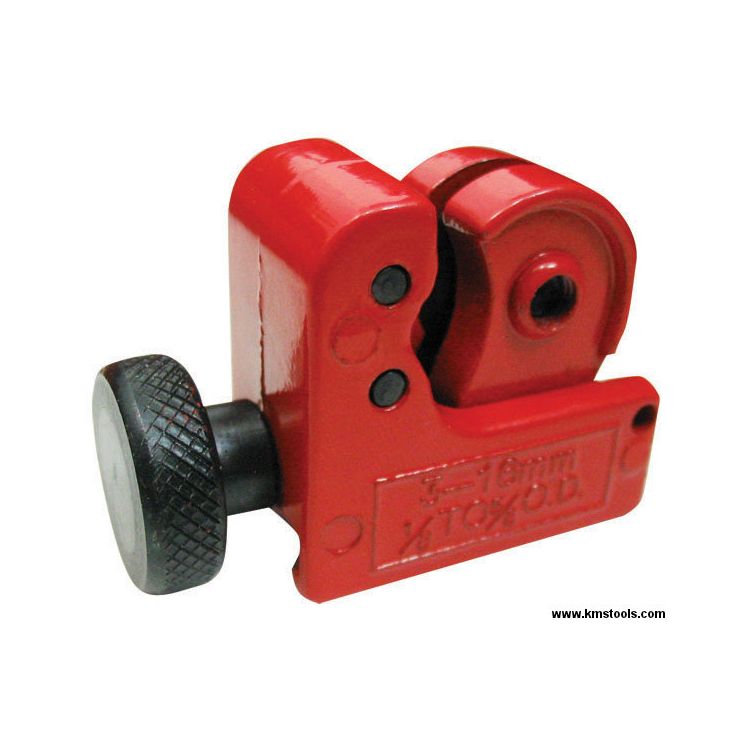

Magnum 1/8 to 5/8 Inch Tubing Cutter (1066)
Make precise, square cuts in tight under-dash or chassis areas where standard tools cannot swing. This ultra-compact tubing cutter slices through critical lines ranging from 1/8 to 5/8 inch, cleanly severing hard and soft copper, aluminum, brass, and plastic. The low-profile design requires minimal clearance around the pipe, allowing tradesmen to execute clean cuts on pre-installed automotive brake lines or cramped HVAC capillary tubes without removing adjacent components.
Features
- Ultra-compact footprint - requires a minimal swing radius, making it ideal for cramped engine bays and tight plumbing runs.
- Multi-material capacity - effortlessly scores and snaps copper, aluminum, brass, and plastic lines without crushing them.
- Large knurled knob - provides excellent grip for greasy fingers to tighten the cutting wheel progressively.
Specifications
- Capacity: 1/8" to 5/8" O.D.
- Compatible Materials: Copper, Aluminum, Brass, Plastic
- Dimensions: 2.0" x 1.5" x 1.0" (51 x 38 x 25 mm)
- Weight: 0.3 lbs (0.13 kg)
- Supplier Part Number: 1066
- KMS Product Code: MAG-1066
Common Shop Applications
- Trimming damaged automotive brake lines directly on the chassis.
- Cutting small-diameter copper lines for HVAC installations.
- Sizing plastic pneumatic tubing for shop air manifolds.
Recommended Shop Add-Ons
- Don't forget: Magnum Mini Pipe Bender – to smoothly route the newly cut small-diameter lines without kinking.
- Our mechanics suggest: Magnum Double Flaring Tool – essential for creating leak-free, high-pressure brake line flares after cutting.
Frequently Asked Questions
Will this cut modern nickel-copper brake line tubing?
Yes, the hardened cutting wheel easily slices through popular nickel-copper (NiCopp) alloy lines used in automotive repair.
Can I replace the cutting wheel?
Yes, the central pin can be removed to install a fresh cutting wheel when the original eventually dulls from extensive use.
