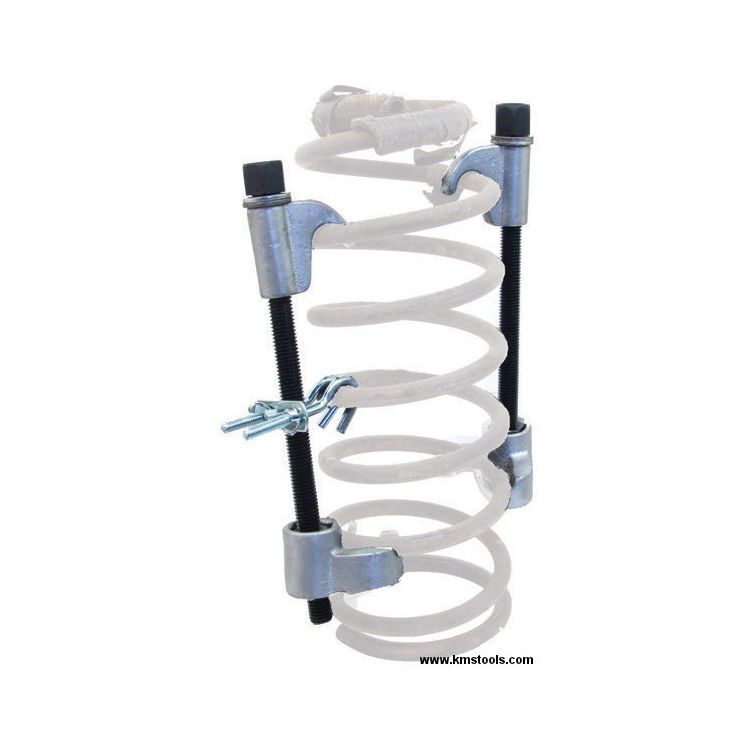

Magnum 300mm Strut Coil Spring Compressor (1064)
Swap out worn struts safely without fighting the immense tension of heavy vehicle suspension. This pair of 300mm strut coil spring compressors allows mechanics to securely clamp and compress springs not accessible from the center of the coil. Engineered to handle thick automotive coils with a maximum 5/8-inch wire diameter, the threaded rods draw down smoothly under load. It accommodates wide assemblies up to 6 inches in outside diameter to cover most modern passenger cars and light trucks.
Features
- Heavy-duty cast hooks - grasp the coil securely to prevent deadly slippage while under maximum compression.
- Optimal 300mm length - provides enough travel to fully relieve spring tension on standard MacPherson strut assemblies.
- Wide spring capacity - safely locks onto outside coil diameters up to 6 inches and wire diameters up to 5/8-inch.
Specifications
- Max Outside Coil Diameter: 6"
- Max Wire Diameter: 5/8" UNC
- Overall Length: 300mm
- Dimensions: 12.0" x 3.5" x 2.5" (305 x 89 x 64 mm)
- Weight: 4.2 lbs (1.90 kg)
- Supplier Part Number: 1064
- KMS Product Code: MAG-1064
Common Shop Applications
- Replacing worn MacPherson strut cartridges.
- Installing aftermarket lowering or lifting springs.
- Replacing damaged strut mount bearing plates.
Recommended Shop Add-Ons
- Most suspension specialists also grab: Magnum 1/2-Inch Drive Impact Wrench – to quickly blast loose rusted strut tower bolts.
- Our mechanics suggest: Magnum Anti-Seize Lubricant – coat the threaded compressor rods to ensure smooth operation under heavy tension.
Frequently Asked Questions
Can I use an impact wrench to tighten these compressors?
It is highly recommended to use hand tools (a socket and ratchet) to tighten the rods evenly and monitor the load. Using an impact wrench can severely damage the threads.
Do I need to grease the threads before use?
Yes, heavily lubricating the forcing screws with anti-seize or EP grease prevents thread galling and extends the life of the tool.
