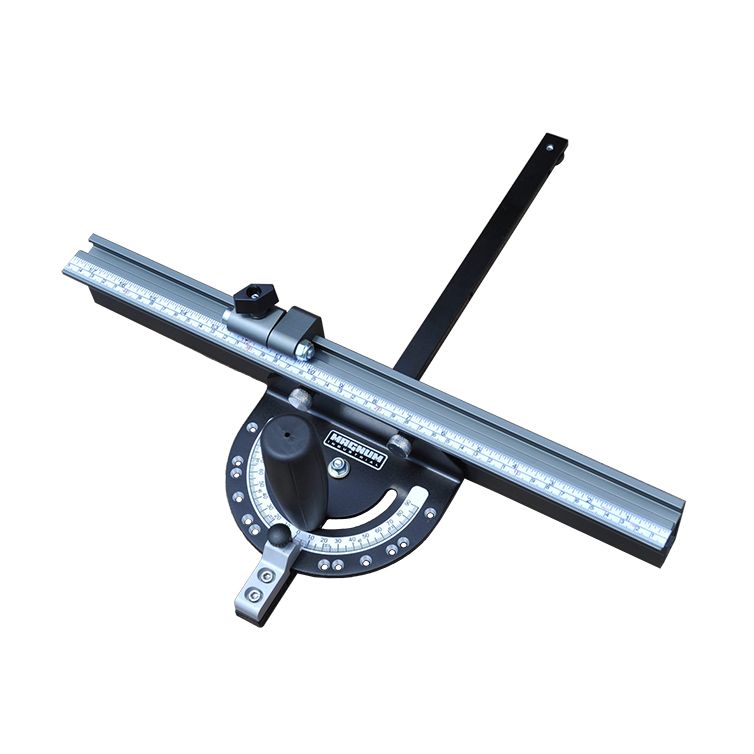

Magnum Industrial Precision Mitre Gauge with Fence and Flip Stop 99-525

Reg. $139.99
$129.99
Save $10
  • SKU: MI-99525
  • Model: 99-525
  • Special Order Item - Order Confirmation Will Quote Ship Time
  • Manufactured by: Magnum Industrial
Qty: Click here for gift cards!

This precision mitre gauge includes a built-in aluminum fence, flip stop and seven positive stops (0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°) so you can make accurate, repeatable cuts safely and easily. The MI-99525 fits both standard mitre slots and T-slot tracks, thanks to its removable T-slot wheel. In addition, the mitre bar comes equipped with spring-loaded detents to keep the gauge snug in older, well-used mitre slots.

  • Fits standard mitre slots (3/4" x 3/8") and T-track slots
  • Seven positive stops (0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°) make it easy to cut precise mitres
  • Adjustable spring-loaded detents in slide bar keeps the mitre gauge tight in older, well-used slots
  • Rugged aluminum fence with built-in flip stop helps you make repeatable cuts faster and more accurately
  • Fence features a large face for added stability and support
  • Specifications
  • Mitre slot bar (L x W x D): 17.72" x 3/4" x 3/8" (450 mm x 19 mm x 9.5 mm)
  • Aluminum Fence (L x W x H): 17.72" x 1.4" x 2.28" (450 mm x  35.5 mm  x 58 mm)
  • T-slot wheel: 0.9" (23 mm)
  • Positive stops: 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°
  • Scale increments: metric and inches
  • Weight: 1.2 lbs (0.54 kg)
