Magnum Industrial 8" Jointer

Reg. $3,199.99 Special Price $2,899.95
In Stock Online
Super Special
SKU
MI-81360
Model#: MI-81360
Check Other Stores

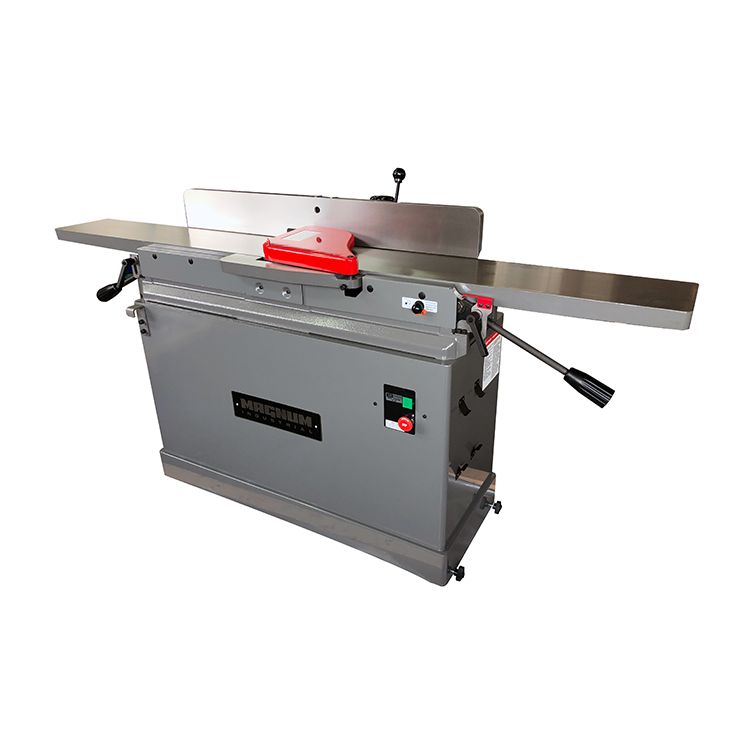

The Magnum Industrial MI-81360 8" Jointer is tough enough for commercial applications—yet it's also right at home in smaller workshops. Featuring a rugged 2 HP motor, a helical cutterhead with 22 carbide inserts, and an extra-long (73") ground cast-iron table, this jointer is designed to deliver high-quality, accurate results time after time.

spec sheet manual.pdf download manual.pdf

  • 2 HP motor powers through a variety of soft and hard woods
  • Magnum helical cutterhead holds 22 double-sided carbide inserts in four rows
  • 73" x 8" parallelogram-style table is easy to adjust and align for accurate results
  • Centre-mount fence features double keyways for added stability
  • Rack-and-pinion fence adjustment allows for quick, precise adjustments
  • Includes hand paddles and magnetic safety switch

Specifications:
Motor: 2 HP, 230 V, 10 amps
Cutterhead speed: 5,500 RPM
Double-sided carbide inserts: 22 (30 mm x 12 mm x 1.5 mm)
Maximum cutting width: 8" (203 mm)
Maximum cutting depth: 1/2" (13 mm)
Fence: 5 x 37" (127 x 940 mm)
Fence tilt: 0-45°
Table: 73" x 8" (1,853 x 203 mm)
Dust outlet: 4" (102 mm)
Weight: 305 lbs (138 kgs)
