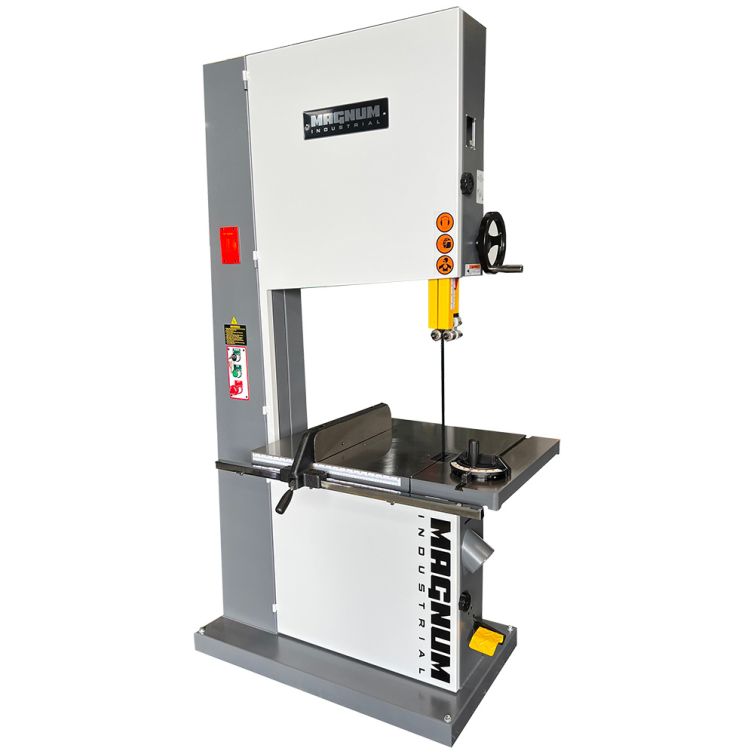

Magnum Industrial 5HP 24" Heavy-Duty Deluxe Bandsaw - 1 Phase

The Magnum Industrial MI-91800 has a large capacity, with a heavy cast table and support trunnions. The 24" heavy-duty deluxe bandsaw will accept blades as wide as 1.5" down to 1/4". It is simple to set up double-wide bearing guides. This bandsaw, with a high duty rating loaded with extra safety features, is a good choice for advanced schools or small manufacturing and custom millwork shops for a variety of projects.

• Quick release blade tension
• Blade tension scale for proper blade tension
• Dynamically balanced cast iron wheels and one piece solid welded frame ensure vibration-free
• Updated bearing guide system
• Foot paddle braking system with safety electrical lockout for quick safety brake
• Large cast iron table
• Keyed lock out mag switch for security
• Deluxe fence system
• Cast iron miter gauge
• Engineered dust collection ports for max efficiency
• Rack and pinion table tilt mechanism
• CSA approved certification

Specifications

• Product: heavy-duty bandsaw
• Manufacturer: Magnum Industrial
• Model: MI-91800
• Motor: 5 HP, 220/230V, 1 PH, 25A
• Cast iron wheel size: 25" (630 mm)
• Cutting height: 16" (400 mm)
• Max cutting width
  • without fence: 24-1/2" (622 mm)
  • with fence: 22-1/2" (570 mm)
• Saw blade length: 181" (4,600 mm)
• Saw blade width: 1/4" to 1-1/2" (6 to 38 mm)
• Dust chutes (2): 4"
• Blade guide: Ball bearing
• Driving belt: A-type, 2 grooves
• Cast iron fence: 1-1/4"W x 3-5/8"H
• Table size: 33-1/2" x 23-5/8" x 2" (850 x 600 x 50 mm)
• Machine size: 47" x 29-1/2" x 81"
• Net weight: 380 kg (837 lbs)
• Gross weight: 438 kg (965 lbs)
