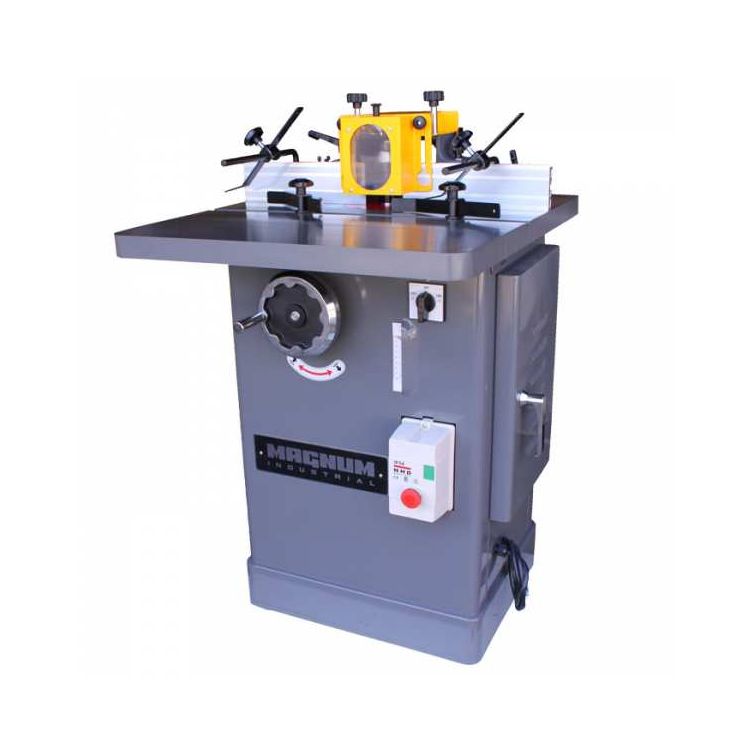

Magnum Industrial 3 HP Spindle Shaper
SKU: MI-41100
Model Number: MI-41100
$2,499.99
$2,699.99
You save $200.00
In Stock Online
The MI-41100 3 HP spindle shaper is compact, yet it provides serious milling capacity. It features a powerful 3 HP motor that can run continuously, and delivers smooth, accurate shaping and milling for a range of applications. Other features include an easy-to-use reversing switch, a micro feed fence system that independently adjusts left or right, and a magnetic switch that prevents burnout.
- Powerful 3 HP motor delivers smooth performance
- Precision ground cast-iron table
- Independent micro feed fences adjust left or right
- T-slot mitre gauge included for tenoning applications
- Two spindle speeds provide versatility for a range of applications
- Cast-iron dust hood captures dust at the source
- Reversing switch make changing directions simple and easy
- Magnetic switch improves operator safety and protects motor from burnout
- Includes 1/2” and 1 1/4” spindle cartridges and 1/4” and 1/2” router collets
- Specifications:
- Motor: 3 HP, 220 V, 1 PH, 15 A
- Table height: 34” (864 mm)
- Table dimensions: 27” x 25” (686 x 635 mm)
- Spindle opening diameters: 7”, 3 1/2”, 3” (177, 89, 76 mm)
- Spindles diameter: 1/2” & 3/4” (13 &19 mm)
- Spindle travel: 3” (76 mm)
- Spindle speeds: 8K &10K RPM
- Fence sizes: 3” x 11” (76 x 279 mm)
- Dust ports: 4” (102 mm)
- Weight: 326 lbs (148 kg)
Manufacturer
Magnum Industrial
Manufacturer SKU
MI-41100
