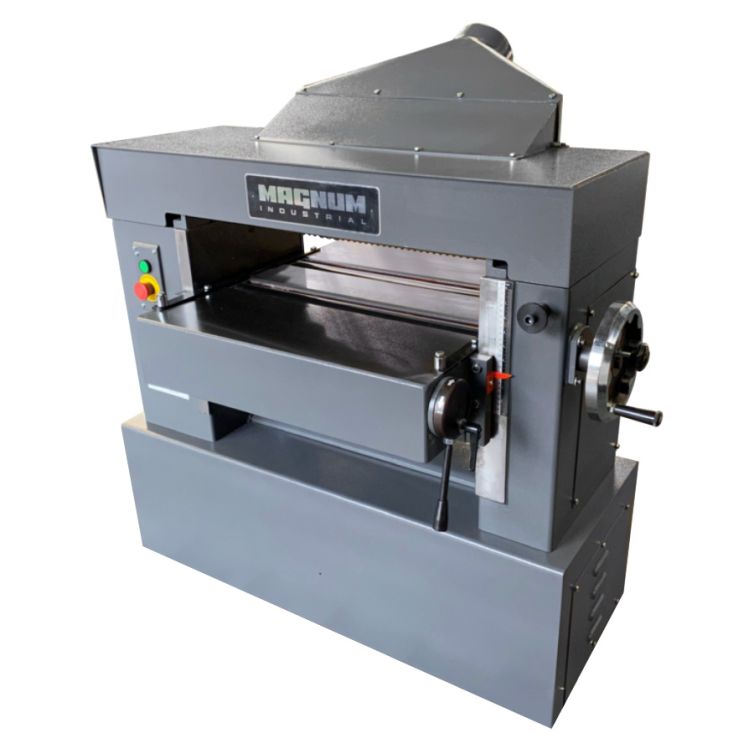

Magnum Industrial 24" 10HP Heavy-Duty Planer

The heavy-duty Magnum Industrial planer is for medium to heavy-duty production. This new European design model incorporates all the features a woodworker would ever need for any planning application. The MI-31662 is excellent for schools and cabinet/furniture shops.

• Sectional infeed rollers allows staggered feeding of small pieces without kickback
• Variable high speed feed of 38 FPM allows for high volume
• Large helical carbide cutterhead diameter minimizes chatter and reduces heat build-up even when planing hardwoods
• Full 10 HP heavy-duty cast iron motor
• Magnetic safety switch for worker and motor protection ($150 value)
• Sound hood with baffles for reduced decibels
• Unique quick lever sets both table rollers for quick adjust of hardwood or softwood snipe-free planing
• Complete one-piece stand reduces vibration
• Dust hood is included and is angled to avoid interference

Specifications

• Product: heavy-duty planer
• Manufacturer: Magnum Industrial
• Model: MI-31662
• Motor: 10 HP, 208V/230V, 3 PH
• Max planing width: 24" (610 mm)
• Max planing thickness: 8" (203 mm)
• Min. planing thickness: 3/16" (4.75 mm)
• Min. planing length: 8" (203 mm)
• Max planing depth: 5/16" (8 mm)
• Knives: (3) helical
• Cutterhead diameter: 84 mm
• Cutterhead speed: 4,800 RPM
• Feeding speed: Variable 20 to 38 FPM (6 to 11.6 m/min.)
• Cuts per inch: (25.4 mm) 62.5/20 FPM to 33/38 FPM
• Table size: 25-1/4" x 28" (660 x 711 mm)
• Weight: 1,100 lbs (500 kg)
