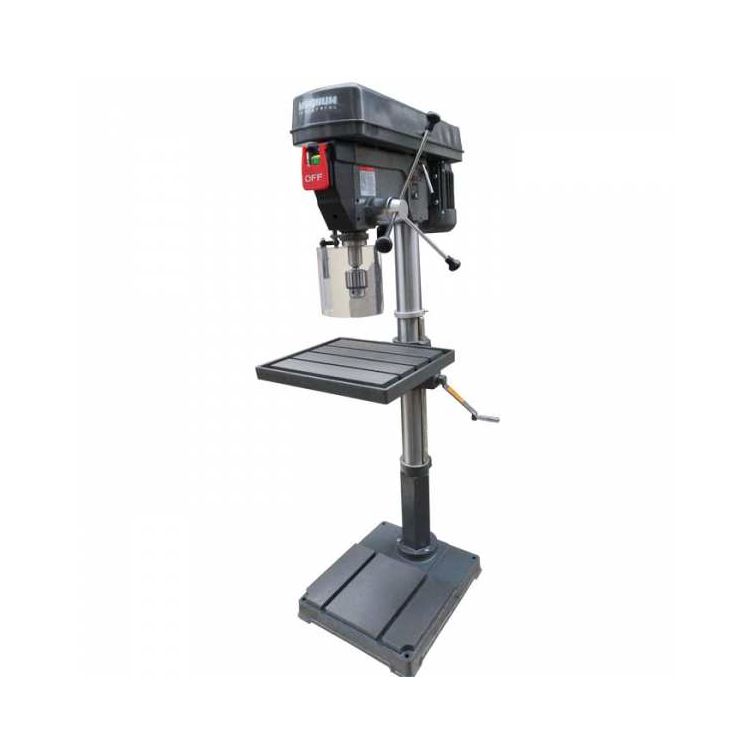

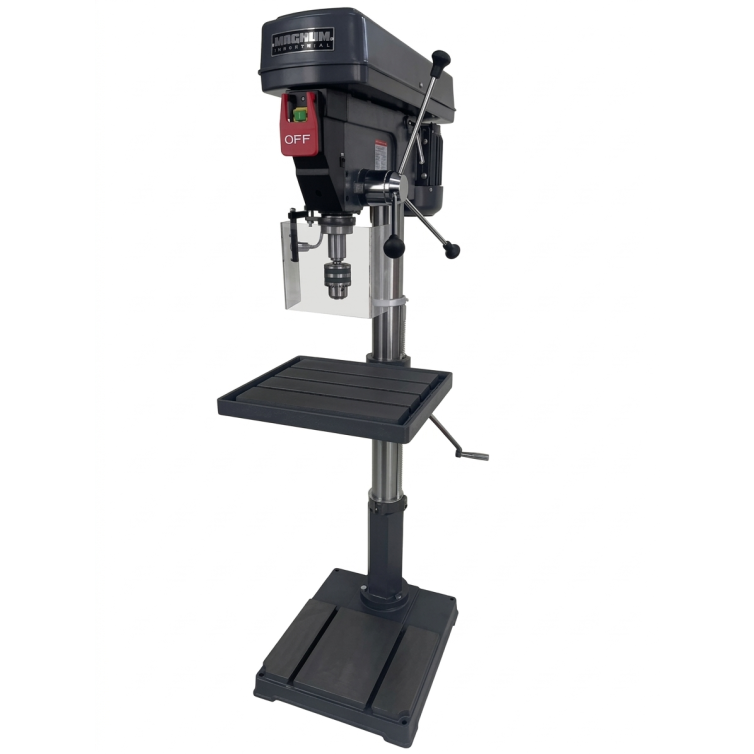

Magnum Industrial 22" Drill Press
With its super-low speed setting, the Magnum Industrial 22" drill press can cut through stainless and hardened steel in light and medium duty professional applications. It's also designed for durability and a long service life: Its 1 HP motor is fully enclosed in a metal hood and its double-wide spindle bearings and precision spindle deliver vibration-free drilling in most types of wood and metal, including stainless. So if you need a drill press that can handle the rigours of your shop, consider the Magnum Industrial 76-450. Other features include a laser guide, chuck guard, built-in work light with a separate on/off switch, extra-long handles that allow for better feed control and 12 drilling speeds, from 120 to 2,270 RPM.
- Powered by a 1 HP dual voltage motor pre-wired 100V industrial motor
- Includes laser light and drill chuck guard
- 3/4" precision chuck and taper for accurate vibration-free drilling
- Double-wide spindle bearings reduce vibration
- Built-in work light with separate on/off switch
- Extra-long handles for better feed control
- Durable metal hood protects motor from dust and debris
- Positive drill stop for improved depth control
- Full range of spindle speeds, from 120 to 2,270 RPM
- Super-low speed, 120 RPM, for drilling stainless and hardened steel
- Precision bearings for accurate drilling and long life
- Unique safety interrupter switch deactivates machine during a power outage and requires manual restart when power returns
Note: When wiring for 220V optional switch #MI-76450-27-220 is required.
Specifications:
- Motor: 1 HP, 110 V, 14 A
- Drilling capacity: 1-1/4" (32 mm)
- Chuck size: 3/4” (19 mm)
- Spindle travel: 4-1/2” (114 mm)
- Table size: 16-1/2" x 19" (420 x 482 mm)
- Column diameter: 3-7/8” (92 mm)
- Spindle speeds: (12) 120 to 2,270 RPM
- Spindle / chuck taper: MT4 / JT3
- Overall height: 68-3/4” (1747 mm)
- Base size: 19-1/2" x 22-1/2" (495 x 558 mm)
- Swing: 22’’ (559 mm)
- Machine net weight: 380 lbs (171 kg)
