Magnum Industrial 200A AC/DC TIG Welder with Fingertip Control Torch
Details
With an upgraded torch and ground clamp, the Magnum Industrial WAVE200KD offers more control and impressive, flexible performance—out of the box. Its torch features fingertip controls, so you can optimize amperage settings without a foot pedal. This makes this welder perfect for jobs both at the bench and away from the friendly confines of your workshop.
With AC/DC TIG capabilities and up to 200 amps of output, the WAVE200KD can weld stainless steel, aluminum or aluminum alloys in a range of thicknesses, from 0.030" to 3/16". It's equipped with a digital display that shows real-time information about voltage and current, and allows you to make quick adjustments, switch modes, fine-tune pulse width and frequency, and more.

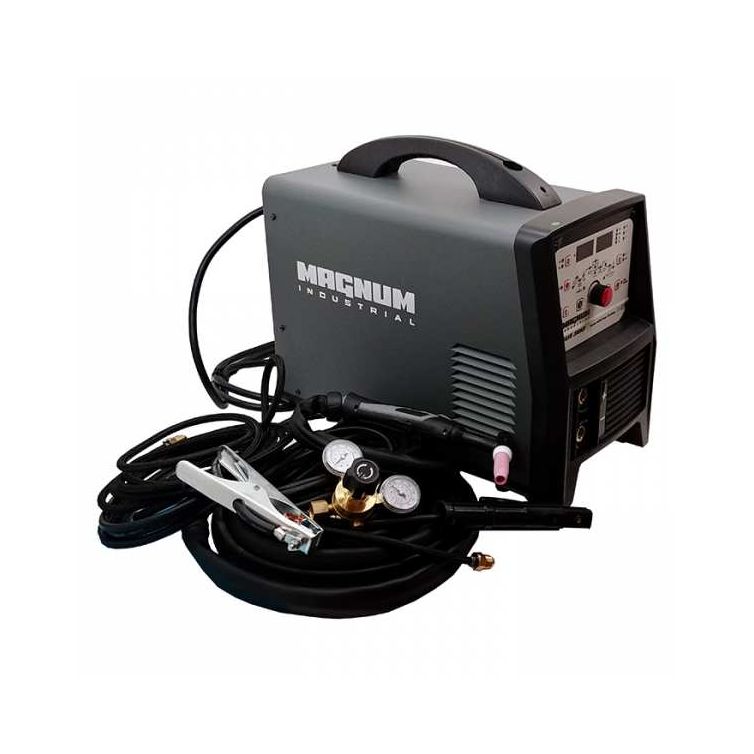

Includes AC/DC TIG welding power source, fingertip control TIG torch, ground clamp, electrode holder and regulator.
- Versatile power source handles AC and DC TIG welding applications
- Ideal for welding a variety of metals—aluminum, aluminum alloys, magnesium, stainless steel and steel—in a range of thicknesses from 0.030" to 3/16"
- Compact design provides job-to-job portability
- Features pulse mode, AC balance control, and high frequency and lift start modes
- Fingertip control facilitates on-the-fly amperage adjustments without a foot pedal
- Specifications:
- Product: TIG welder
- Brand: Magnum Industrial
- Model: WAVE200KD
- Welding processes: AC/DC TIG (GTAW)
- Input: 220 volts
- Power frequency: 50/60 Hz
- Rated input capacity: 7.9 KVA
- Rated input current: 36
- Output no load voltage: 65
- Rated working voltage: 18
- DC argon welding current: 5-200 amps
- AC argon welding current: 10-200 amps
- Stick welding current: 5-170
- Current up time: 0-15 seconds
- Current drop time: 0-25 seconds
- Pulse frequency: 0.5-250 Hz
- DC pulse width adjustment: 15-85%
- AC clean area control: 15-65%
- Gas stop delay time: 0-30 seconds
- Rated duty cycle: 35%
- Cooling type: Air cooling
- Efficiency: 85% (approx)
- Power factor: 0.92
- Insulation degree: H
- Cover protection degree: IP21S
- Weight: 43 lbs (19.5 kg)
- Dimension: 19.7" x 9.5" x 16.1" (500 mm x 240 mm x 410 mm)
