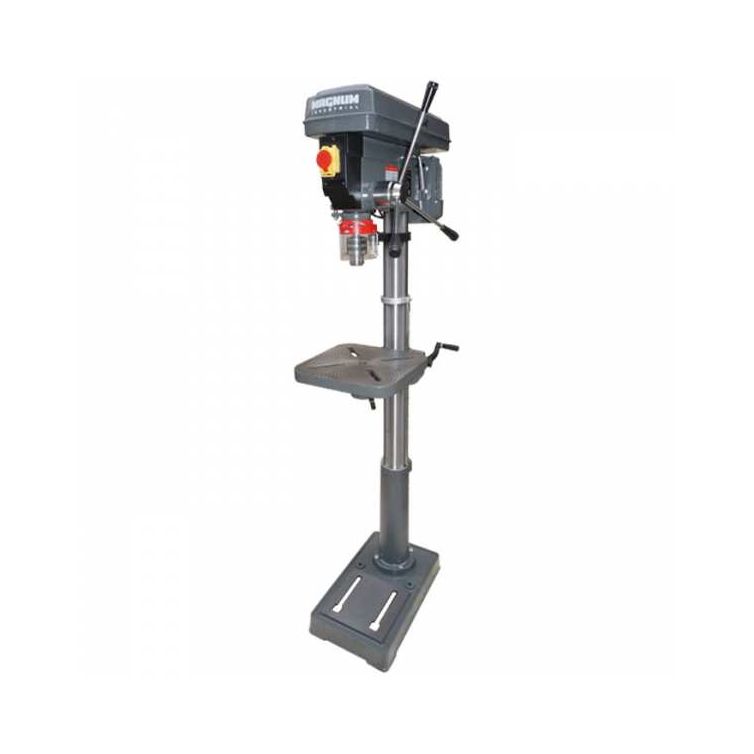

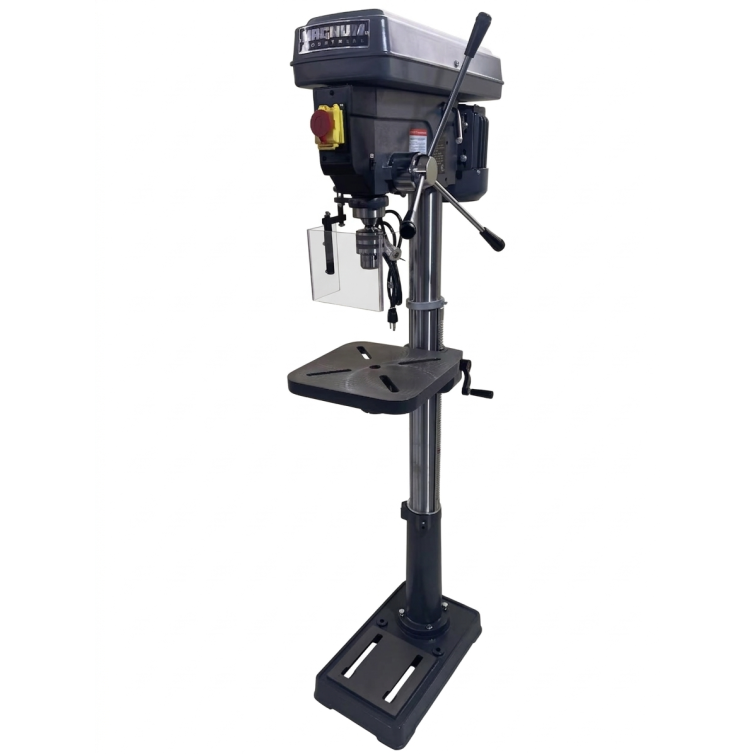

Magnum Industrial 17" Drill Press
Reg. $949.99 Special Price $899.99
In Stock Online
SKU
MI-76350
Model#: 76-350
Details
The Magnum Industrial 17" drill press delivers precision and power—and it's designed to handle the demands of a professional setting. With an industrial 1 HP motor that's fully enclosed in a durable metal hood, double-wide spindle bearings and a precision spindle, the 76-350 is a great option for fabricators looking for a drill press that's rugged enough to handle the demands of light and medium duty production work and accurate enough to consistently deliver precise results. Other features include a laser guide, chuck guard, built-in work light with a separate on/off switch, extra-long handles that allow for better feed control and 12 drilling speeds, from 280 to 3,000 RPM.
- Includes laser light and drill chuck guard
- 5/8" precision chuck and taper for accurate vibration-free drilling
- Double-wide spindle bearings reduce vibration
- Built-in work light with separate on/off switch
- Extra-long handles for better feed control
- Durable metal hood protects motor from dust and debris
- Positive drill stop for improved depth control
- Full range of spindle speeds, from 280 to 3,000 RPM
- Precision bearings for accurate drilling and long life
- Ideal for drilling wood and metal
- Unique safety interrupter switch deactivates machine during a power outage and requires manual restart when power returns
- Dual voltage motor
Note: When changing to 220V optional switch #MI-76350-23-220 must be ordered.
Specifications:
- Motor: 1 HP, 110 V, 12.5A (220V-7A)
- Drilling capacity: 5/8” (16 mm)
- Chuck size: 5/8” (16 mm)
- Spindle travel: 3-1/8” (80 mm)
- Spindle distance to table: 31" (787 mm)
- Spindle distance to base: 48" (1219 mm)
- Table size (diameter): 11-3/8” (289 mm)
- Column diameter: 2-7/8” (73 mm)
- Spindle speeds: (12) 280 to 3,000 RPM
- Spindle / Chuck taper: MT2 / JT3
- Overall height: 64-1/4” (1638 mm)
- Base size: 10” x 16-7/8” (254 x 429 mm)
- Swing: 17" (432 mm)
- Machine net weight: 200 lbs (90 kg)
