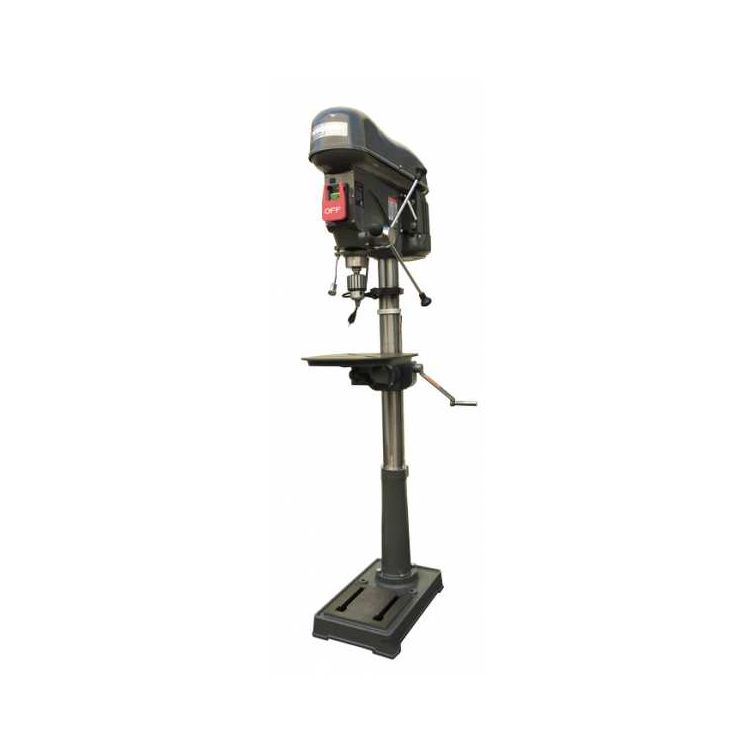

With a 6" stroke, upgraded laser and a precision-made spindle and bearings, the Magnum Industrial 17" heavy-duty drill press delivers pinpoint, vibration-free drilling and can withstand the daily grind of busy production shops and garages.
Cast-iron 1 hp motor is fully enclosed pre-wired 110V
Includes upgraded laser and adjustable inspection light
3/4" precision chuck for accurate, small-diameter drilling
Cast iron pulleys reduce vibration
Built-in work light with separate on/off switch
Extra-long, 1/2" diameter handles for better feed control
Durable metal hood protects motor from dust and debris
Positive non-slip drill stop improves depth control
Full range of spindle speeds, from 340 to 2,800 RPM
Precision bearings for accurate drilling and long life
Ideal for drilling wood and metal
Unique safety interrupter switch deactivates machine during a power outage and requires manual restart when power returns Note: When wiring for 220V optional switch #MI-76370-70-220V is required.
Specifications:
Motor: 1 HP, 110 V, 12.5 A
Drilling capacity: 1” (21 mm)
Chuck size: 3/4” (19 mm)
Spindle travel: 6” (152 mm)
Table size (diameter): 14" x 14" (355 x 355 mm)
Column diameter: 3-1/8” (79 mm)
Spindle speeds: (12) 255 to 2,750 RPM
Spindle / Chuck taper: MT3 / JT3
Overall height: 68” (1,730 mm)
Base size: 11-3/4” x 19-5/8” (302 x 500 mm)
Swing: 16-15/16’’ (340 mm)
Machine net weight: 230 lbs (104 kg)
