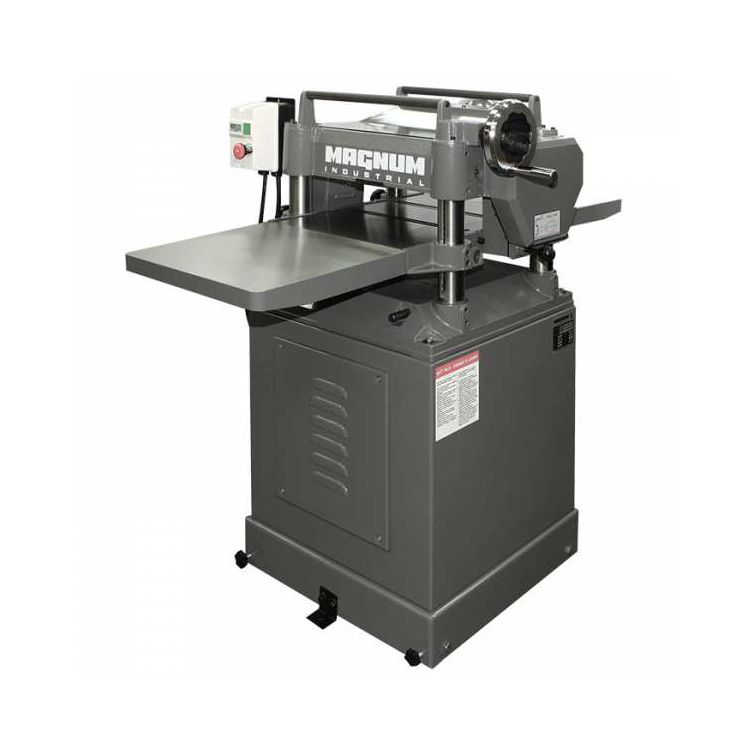

Magnum Industrial 15" Planer with Helical Cutterhead
SKU: MI-31250
Model Number: 31-250
$3,999.99
$4,299.99
You save $300.00
In Stock Online
The Magnum Industrial MI-31250 15" helical head planer is considered one of the industry's finest. High-speed bearings, hardened steel gears and a cast iron motor ensure that this planer can deliver in demanding professional applications. Its double-sided rectangular carbide inserts make quick work of hardwoods like cross-grain maple and teak and are also quick to set, eliminating the need for time-consuming and finicky knife-setting jigs.
- 3 HP heavy-duty cast-iron motor is mounted on the bottom to provide better stability
- Helical cutterhead with carbide inserts delivers smooth, accurate cuts—an upgrade over conventional heads or systems with square inserts
- Rugged one-piece stand stabilizes planer and reduces vibration
- Four-post lock minimizes snipe marks on final pass
- Top-mounted return rollers enable multiple passes on long pieces of stock
- Built-in casters with locks allow for easy mobility and repositioning
- Magnetic safety switch adds safety and protects motor from overloading
- Specifications:
- Motor: 3 HP, 230 V, 1 Ph, 15 amps
- Carbide inserts: 42
- Cutterhead speed: 5,000 RPM
- Cutterhead diameter: 2-7/8" (50.8 mm)
- Maximum planing width: 15" (380 mm)
- Planer opening: 6" (152 mm)
- Minimum thickness: 3/8" (9.5 mm)
- Minimum stock length: 6-1/2" (1.98 m)
- Maximum cutting depth:1/8" (3.175 mm)
- Feed speed: 16 LFM and 20 LFM (4.87 and 6.1 metres per minute)
- Dust ports: 1 x 5" (127 mm)
- Weight: 598 lbs (271 kg)
