Magnum Industrial

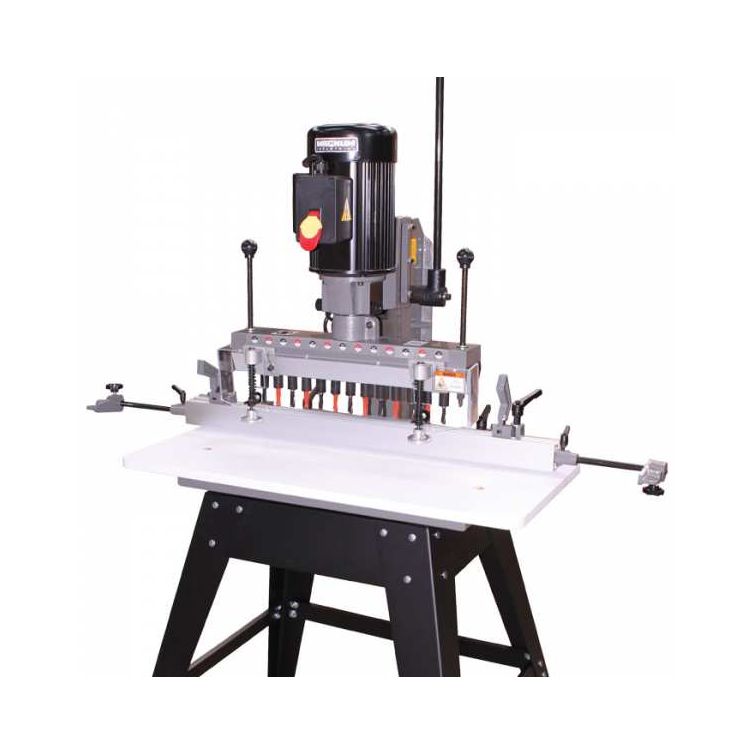

Magnum Industrial 13 Spindle Boring Machine

Reg. $2,999.99 Special Price $2,899.99
Limited Qty Online
SKU
MI-77400
Model#: 77-400
Check Other Stores

Designed for pro cabinet shops and made to deliver efficient and accurate results, the Magnum Industrial MI-77400 13 Spindle Boring Machine drills 13 holes in a single stroke, so you can produce holes for European-style adjustable shelves and accessory hardware. The MI-77400 comes loaded with timesaving features including handy work stops for boring consistent parallel patterns and indexing pins for aligning longer workpieces, like pantry doors or book shelves. Plus, with its heavy-duty construction and 1-1/2 hp motor, the MI-77400 is rugged enough to meet the demands of your shop.

spec sheet manual.pdf download manual.pdf

  • 1-1/2 hp motor powers through the toughest laminate and solid wood
  • Built-in fence with work stops on each end allow precise repeat drilling on multiple work pieces
  • Indexing pins provide consistent alignment and ensure accuracy when boring extra long pieces
  • Adjustable depth stops deliver consistent results and an efficient workflow
  • Heavy-duty cast-iron construction meets the demands of professional cabinet manufacturers
  • Long lever delivers effortless action and improved control
  • Extra-wide floor stand provides stability and vibration-free operation
  • Includes 5 mm boring bits with 10 mm shank
  • Optional Blum-style hinge boring head (MI-99745) available
  • Specifications:
  • Motor: 1-1/2 HP, 110 V, 1 Phase, 12.6 Amps
  • Number of spindle drill heads: 13 (6 left / 7 right)
  • Collet size: 10 mm
  • Spindle speed: 3,450 rpm
  • Table size (l x w): 31-1/2" x 15-3/4" (800 x 400 mm)
  • Table height from floor: 33-3/8" (847 mm)
  • Maximum depth of stroke: 2-1/2" (64 mm)
  • Maximum depth (bit to fence): 4" (102 mm)
  • Fence: 31-1/2" (800 mm)
  • Maximum stock thickness: 5-1/2" (140 mm)
  • Weight: 214 lbs (97 kg)
