Magnum Industrial 13" Helical Head Planer

Reg. $829.99 Special Price $749.95
In Stock Online
Flyer Sale
SKU
MI-31170
Model#: 40800H
Check Other Stores

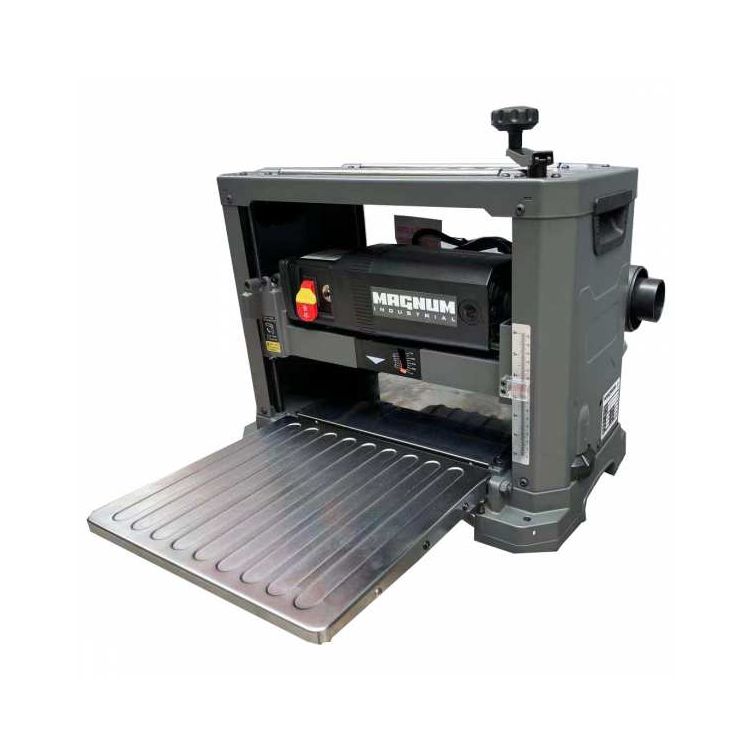

The NEW Magnum Industrial MI-31170 13" Helical Head Planer with 2 speeds and top mounted rollers excels in short-run applications with either hard or soft wood. Its redesigned tables fold up for easy storage and features four support posts to minimize snipe. This portable planer is ideal for small shops and jobsite applications where high-quality finish is critical.

spec sheet manual.pdf download manual.pdf

  • Top mounted rollers for long board handling
  • 2 speed motor for better results when planing
  • Turret stop for repeat thickness settings
  • Powerful 15 Amp motor and helical cutterhead deliver smooth, consistent results
  • Durable four-post table ensures stable feeding and minimizes snipe
  • Double-sided carbide inserts probide long service life and allow for easy set up
  • Helical cutterhead reduces noise levels and tear out on hard wood cross grain
  • Sturdy retractable tables fold away for storage and transport
  • Dust hood provides efficient dust control when connected to shop-vac or dust collector
  • Depth of cut indicator allows improved accuracy
  • Keyed on/off switch provides additional safety

Specifications

  • Motor: 110V, 15A
  • Carbide inserts: 26
  • Cutterhead speed: 10,000 RPM
  • Max planing width: 13" (330 mm)
  • Planer opening: 6" (152 mm)
  • Minimum thickness: 1/8" (3 mm)
  • Minimum stock length: 5" (127 mm)
  • Maximum cutting depth: 1/16" (1.5 mm)
  • Feed speed: 26 LMF
  • Table with extensions: 33-3/4" x 13" (857 x 330 mm)
  • Weight: 79 lbs (35.8 kg)
