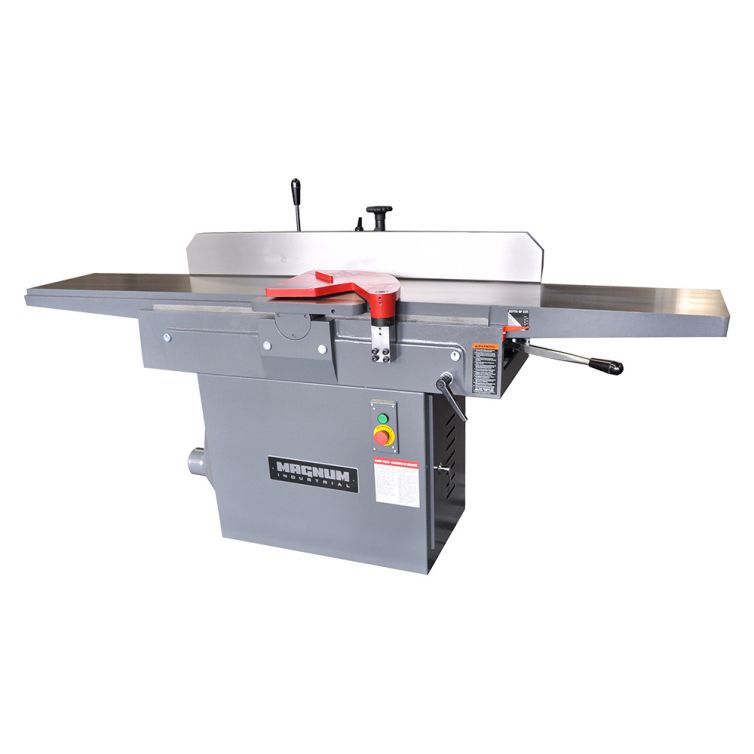

Magnum Industrial 12" 5HP 3PH Long Bed Jointer

The Magnum Industrial 12" Long Bed Jointer is designed with extra thick seasoned castings for stability. Our CNC mills precision grind the tables to offer the flattest and most accurate tolerances. Parrallelogram table adjustments are easy to adjust. Other features include the German designed Magnum helical carbide insert cutterhead.

• Magnum helical head is a German designed system with rectangular double-sided carbide inserts that offers quick changeover with no special tools needed
• Lower decibels
• Long life carbide
• Less grain tear out on grainy material
• Magnetic safety switch
• Quick set fence tilt
• Quick adjust fence position
• CSA approved

Specifications

• Product: long bed jointer
• Manufacturer: Magnum Industrial
• Model: 81-552
• Motor: 5HP, 220V, 3PH, 14A (suitable for 208V supply)
• Max cutting depth: 12" (305mm)
• Max cutting width: 3/4" (19mm)
• Table: 12" x 84" (305mm x 2,133mm)
• Table height: 32" (803mm)
• Fence: 47" x 5-1/2" (1,194mm x 140mm)
• Tilt: 45° (front & rear)
• Memory stops: 45°, 90°, 135°
• Cutterhead speeds: 5,000 RPM
• Carbide inserts: 34
• Diameter: 4" (101.6mm)
• Rebatting capacity: 3/4" (19mm)
• Shipping weight: 910 lbs (413 kg)
