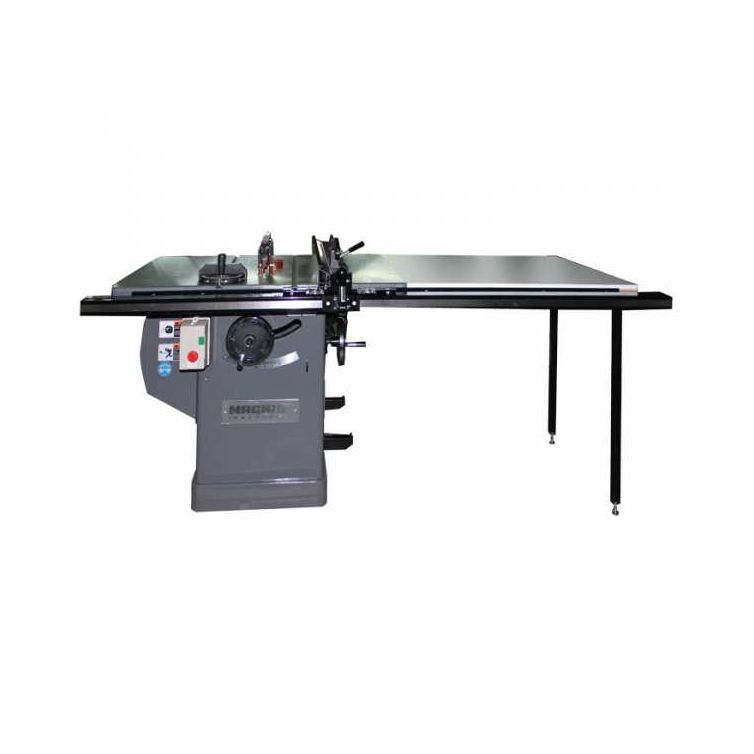

Magnum Industrial 10" Heavy-Duty 3 HP Cabinet Saw

• Features
• 3 HP cast-iron motor is fully enclosed to keep out dust and debris
• Extra-large precision-ground cast-iron table
• Self-aligning fence is loaded with features
• L-12 version on fence allows 12" to left of blade capacity
• Removable riving knife prevents kickback
• Forged one-piece arbor guarantees minimal saw runout
• Magnetic safety switch
• Blade lock for safe, easy blade changing
• Extra-large table insert makes for easy blade changes
• Large T-slot mitre gauge slots
• Serpentine jointless drive belt delivers super-smooth operation
• Hanging brackets provide blade and wrench storage
• Includes laminated pre-drilled table boards and adjustable steel legs

Specifications:

• Motor: 3 HP, 220 V, 1 Phase, 11.7 amps
• Blade diameter: 10" (254 mm)
• Arbor diameter: 5/8" (16 mm)
• Arbor speed: 4,300 RPM
• Arbor tilt (left tilt): 0° to 45°
• Maximum cutting depth at 45°: 2-1/8" (54 mm)
• Maximum cutting depth at 90°: 3" (77 mm)
• Maximum rip to left of blade: 12" (305 mm)
• Maximum rip to right of blade: 50" (1270 mm)
• Maximum dado cut: 13/16" (21 mm)
• Dust port diameter: 4" (102 mm)
• Table height: 34" (863 mm)
• Main table size: 42" x 29" (1,066 mm x 736 mm)
• Base dimensions: 21" x 23" (533 mm x 584 mm)
• Weight: 524 lbs
