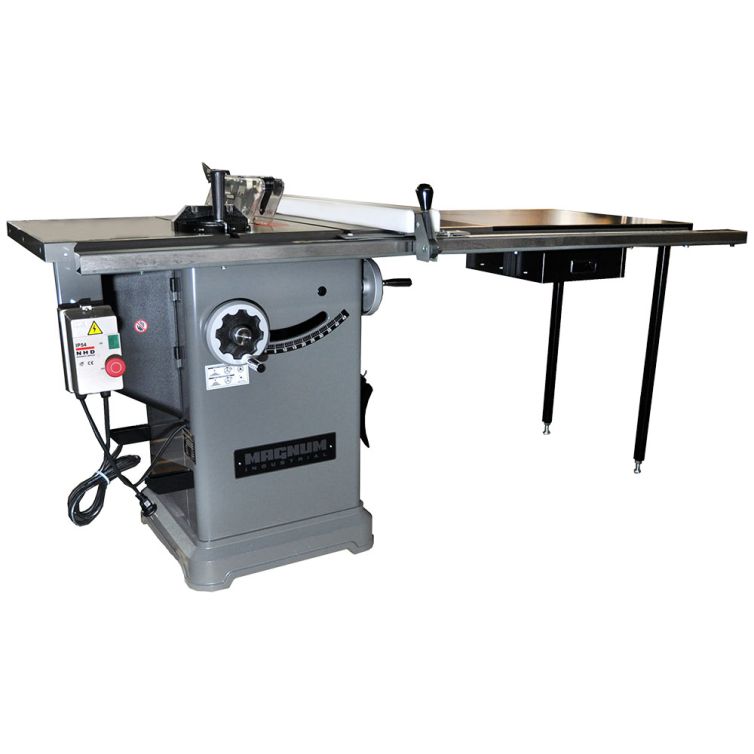

Magnum Industrial 10" 3HP Cabinet Saw with Storage Drawer

This 3 hp 10" left-tilt cabinet saw is ideal for light- to medium-duty shops, especially those that require a full 50" rip capacity. In addition to its powerful 3 hp motor, this saw also features a self-aligning precision T-fence and an internal dust collection port near the blade, which adds to the efficiency and effectiveness of your dust collection system. Further improve safety and dust control with the optional Magnum Industrial MI-52100 10" Overarm Blade Guard.

• 3 HP cast-iron motor is fully enclosed to keep out dust and debris
• Precision self-aligning T-square fence with 50" rip capacity
• Quick-change fence faces save time and improve efficiency
• L-12 version on fence allows 12" to left of blade capacity
• Removable riving knife prevents kickback
• Forged one-piece arbor guarantees minimal saw runout
• See-thru guard with anti-kickback features
• Magnetic safety switch
• Blade lock for safe, easy blade changing
• Upgraded dust collection design is super efficient
• Extra-large table insert makes for easy blade changes
• Large T-slot mitre gauge slots
• Serpentine jointless drive belt delivers super-smooth operation
• Hanging brackets provide blade and wrench storage
• Metal table with storage drawer
• Includes laminated pre-drilled table boards and adjustable steel legs

Specifications

• Motor: 3 HP, 230 V, 13 amps
• Blade diameter: 10" (254 mm)
• Arbor diameter: 5/8" (16 mm)
• Arbor speed: 4,000 RPM
• Arbor tilt (left tilt): 0° to 45°
• Maximum cutting depth at 45°: 2-1/8" (54 mm)
• Maximum cutting depth at 90°: 3" (77 mm)
• Maximum rip to left of blade: 12" (305 mm)
• Maximum rip to right of blade: 50" (1270 mm)
• Maximum dado cut: 13/16" (21 mm)
• Dust port diameter: 4" (102 mm)
• Table height: 36"-3/4" (914 mm)
• Table size: 44" x 27" (1,118 mm x 686 mm)
• Base dimensions: 23" x 22-1/2" (584 mm x 572 mm)
• Weight: 371 lbs (168 kg)
