Magnum Industrial

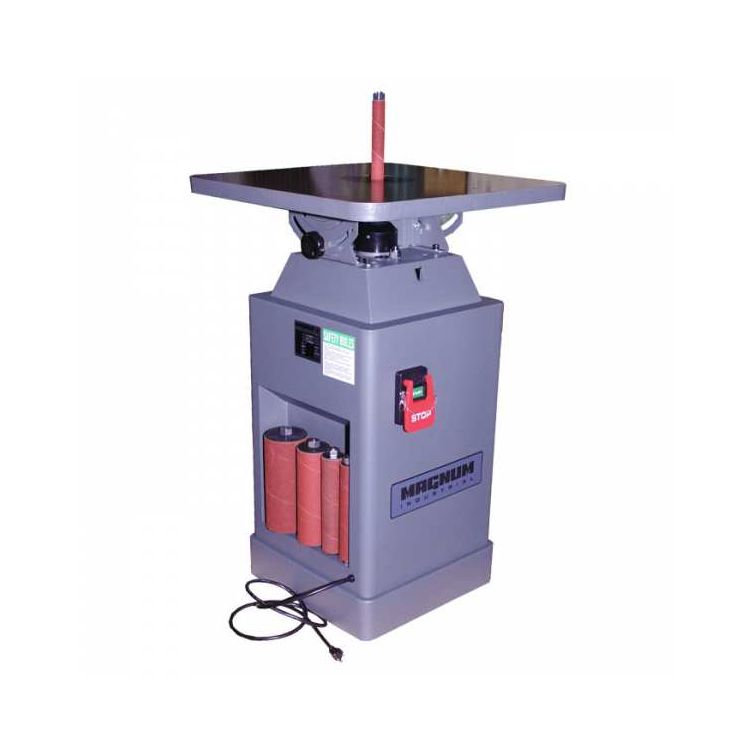

Magnum Industrial 1 HP Oscillating Spindle Sander

Clearance
SKU: MI-16150 Model Number: 16-150
Sold Out
Sold Out

Selected Location

Other Locations

Designed to meet the needs of light- to medium-duty production shops and educational facilities, the Magnum Industrial Oscillating Spindle Sander is an all-around sander that can handle a variety of materials. Whether you're working with wood, metal or plastic, this sander delivers both performance and durability for a range of projects, large and small.

spec sheet manual.pdf download manual.pdf

  • Delivers 75 oscillations per minute and a full 1-1/2" stroke
  • Precision cast table tilts from 0 to 45 degrees
  • Includes 10 spindles (1/4" to 4"), precision taper ground to minimize spindle runout
  • Heavy-duty helical geared transmission is enclosed in an oil bath gearbox and delivers smooth reciprocal action and stays cool during heavy use
  • 1 hp continuous-duty motor is fully enclosed for protection from dirt, dust and debris
  • Includes cast-iron dust hood and three interchangeable metal inserts for precision sanding of small pieces
  • Safety switch

Specifications
Motor: 1 HP, 110 / 220 V, 1 Ph, 10.5 amps
Spindle speed: 1,725 rpm
Spindles: Includes 10 (1/4" to 4")
Oscillation length: 1-1/2" (36 mm)
Oscillation speed: 75 oscillations per minute
Table size: 24-1/4" x 24-1/4" (616 x 616 mm)
Table tilt angle: 0° to 45°
Table height: 39" (990 mm)
Dust outlet: 4" (102 mm)
Base dimensions: 17-1/2" x 17-1/2" (445 x 445 mm)
Weight: 319 lbs (145 kg)

Manufacturer
Magnum Industrial
Manufacturer SKU
16-150
