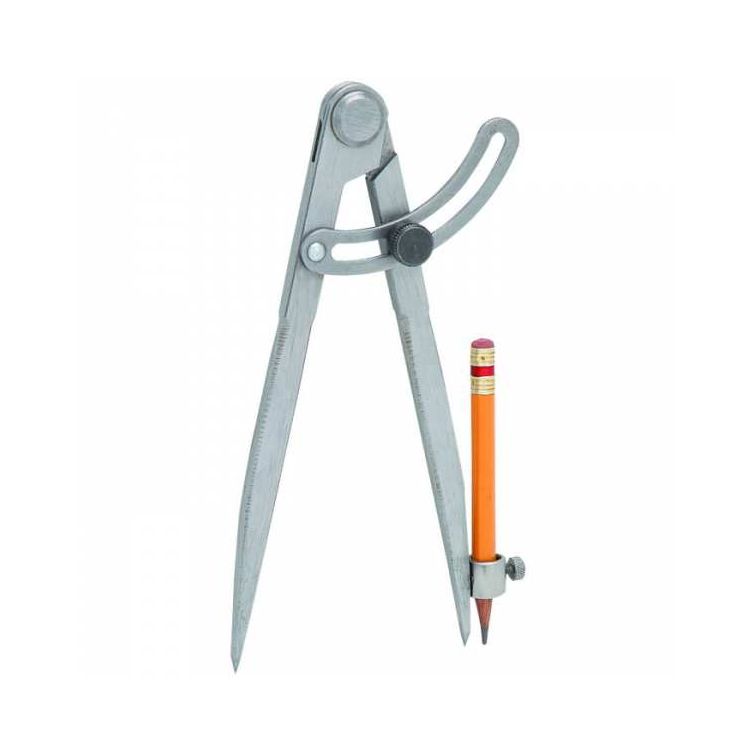

Magnum Heavy-Duty 8" Wing Compass - WC8

This 8-inch wing compass performs precision layout and measurement transfers in the shop. The Magnum WC8 features machined steel legs and an adjusting screw for exact adjustments.

Features

• Machined Steel Legs - Equipped with hardened points for precise material marking
• Fine Adjustment - Utilizes an adjusting screw with a self-seating washer and nut
• Lockable Wing - Maintains set dimensions for repetitive layout tasks
• Integrated Pencil Holder - Allows for direct scribing on workpieces

Specifications

• Size: 8" (203 mm)
• Material: Steel
• Supplier Part Number: 200MM COMPASS
• KMS Product Code: MAG-WC8

Common Shop Applications

• Laying out large radii on sheet materials
• Scribing cut lines for fabrication
• Transferring dimensions from blueprints to stock

Recommended Shop Add-Ons

• Magnum Heavy-Duty 6" Wing Compass
• Magnum Heavy-Duty C-Clamp - 4"

Frequently Asked Questions

Q: How are adjustments made? A: It uses an adjusting screw with a self-seating washer and nut.

Q: What are the points made of? A: The tool features machined steel legs with hardened points for precise marking.
