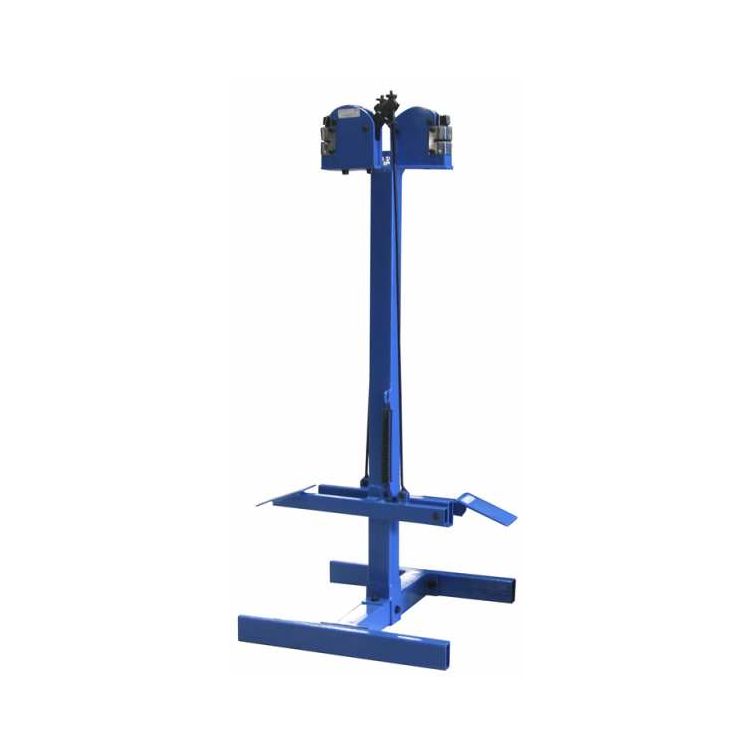

Magnum Foot Operated Sheet Metal Shrinker Stretcher (SS18FD)

Shape custom sheet metal contours while keeping both hands firmly on the workpiece. The Magnum MAG-SS18FD utilizes a foot-pedal mechanism, providing maximum control when shrinking inner arches or stretching aero panels. The heavy-duty floor stand provides an ergonomic working height for long hours of repetitive metal shaping .

Features

• Foot-pedal operation - frees up both hands to manipulate and guide the 18-gauge sheet metal .
• Rugged floor stand - provides a stable, comfortable base for repetitive forming tasks .
• Interchangeable jaw sets - comes complete with both shrinker and stretcher jaws for complete panel contouring .

Specifications

• Capacity (Mild Steel): 18 Gauge (1.2 mm)
• Throat Depth: 1" (25.4 mm)
• Packing Dimensions: 44.5" x 16.9" x 6.7" (113 x 43 x 17 cm)
• Net Weight: 52.9 lbs (24 kg)
• Supplier Part Number: 373223
• KMS Product Code: MAG-SS18FD

Common Shop Applications

• Shrinking wheel arch flanges for automotive restoration .
• Stretching custom airplane body panels .

Includes

• Shrinker jaw set .
• Stretcher jaw set .
• Floor stand and hardware.

Recommended Shop Add-Ons

• Most metal shapers also grab: Contour Gauge - to repeatedly check your panel shape against the original piece.
• You'll also need: Jaw Cleaning Brush - to keep the hardened steel jaws free of metal flakes for a better grip.

Q: How hard is it to switch between shrinking and stretching? A: You simply swap the jaw sets out in the main body using basic hand tools; it takes only a minute or two.

Q: Will it leave marks on aluminum? A: Yes, the textured jaws will leave stipple marks, which can be lightly planished or sanded out later.
