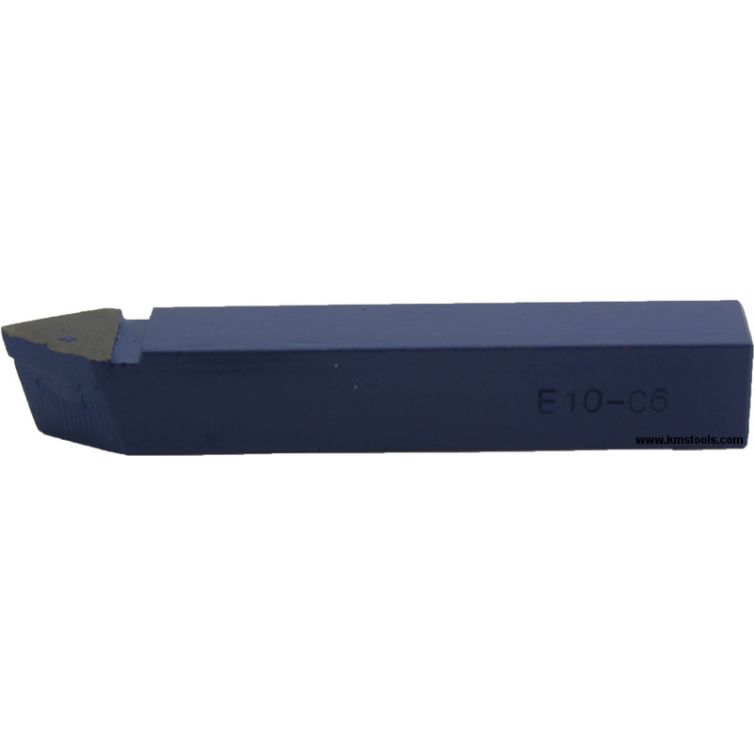

Magnum E10 C6 Carbide Tipped 5/8 Inch Square Lathe Threading Tool (E10)
Cut precise 60-degree threads and clean chamfers in tough steel alloys with ease. The Magnum E10 features a high-hardness C-6 grade carbide tip brazed to a robust 5/8" square shank, offering the thermal stability required for professional-grade lathe operations. The Style E profile is a shop multi-tool, equally capable of outside threading, 30-degree chamfering, and light undercutting. It provides the rigidity needed for consistent thread quality without the rapid wear associated with HSS.
Features
- Industrial C6 Carbide Tip - optimized for high wear resistance and heat stability when threading ferrous metals.
- Rigid 5/8" Square Shank - minimizes vibration to ensure clean, chatter-free thread profiles and surface finishes.
- Multi-Purpose Style E - universal geometry for threading, notching, and 30-degree chamfering tasks.
Specifications
- Style: E (Threading/Chamfering)
- Shank Size: 5/8" Square (15.88 mm)
- Material: C6 Carbide Tipped
- Overall Length: 4" (101.6 mm)
- Supplier Part Number: E10
- KMS Product Code: MAG-E10
Common Shop Applications
- Cutting 60-degree V-threads on steel shafts.
- Creating 30-degree chamfered lead-ins on machined components.
Recommended Shop Add-Ons
- Don't forget: Screw Pitch Gauge - essential for verifying your thread count during the machining process.
- Most machinists also grab: Diamond Honing Stone - keep the carbide tip razor-sharp for the best possible thread finish.
Frequently Asked Questions
Q: Can I use this for internal threading? A: No, Style E is an external threading tool; for internal work, you would need a dedicated boring-style threading bar.
Q: Is this tool bit ready to use out of the box? A: Yes, it is factory ground, but a light diamond hone is recommended for fine-finish applications.
